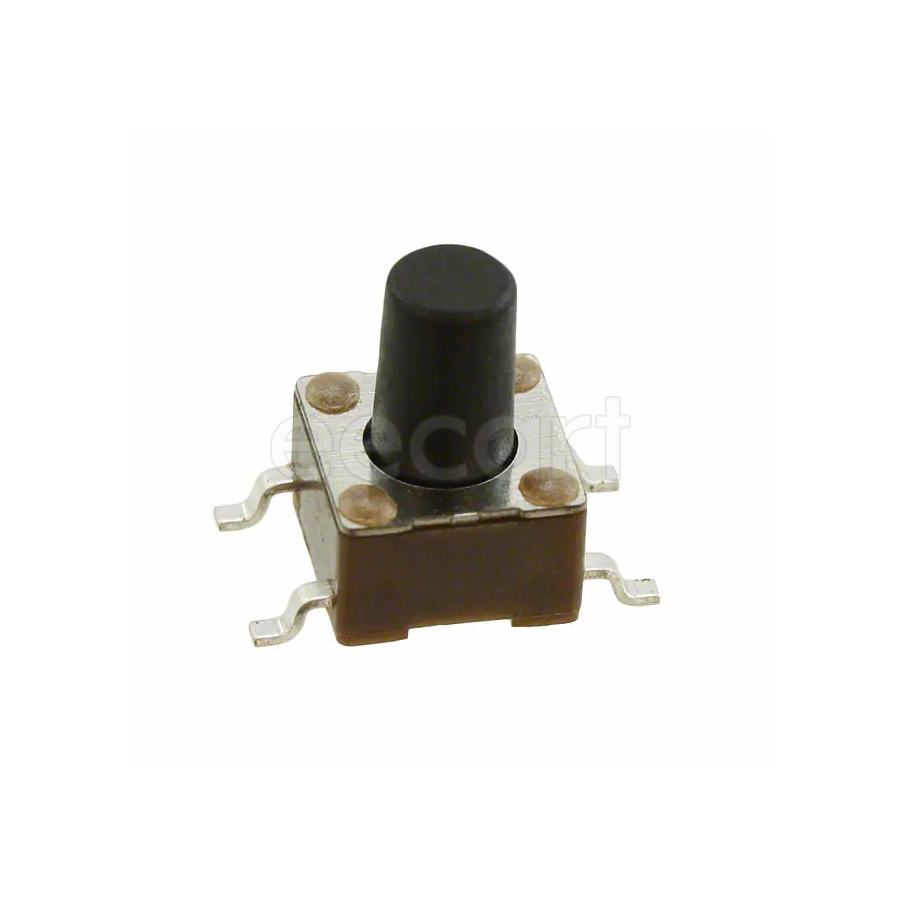

TL3301PF160QJ
Manufacturer:
E-Switch
Mfr.Part #:
TL3301PF160QJ
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 160 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Throw Configuration | SPST |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 160 gf |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 100 kcycles |
| Actuator Type | Standard |
| Mounting Direction | Straight |
Stock: 3051
Distributors
pcbx
pcbxUnit Price$0.23767
Ext.Price$0.23767
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23767 | $0.23767 |
| 10 | $0.23254 | $2.32540 |
| 25 | $0.22549 | $5.63725 |
| 50 | $0.21865 | $10.93250 |
| 100 | $0.21203 | $21.20300 |
| 300 | $0.18607 | $55.82100 |
| 500 | $0.16329 | $81.64500 |
