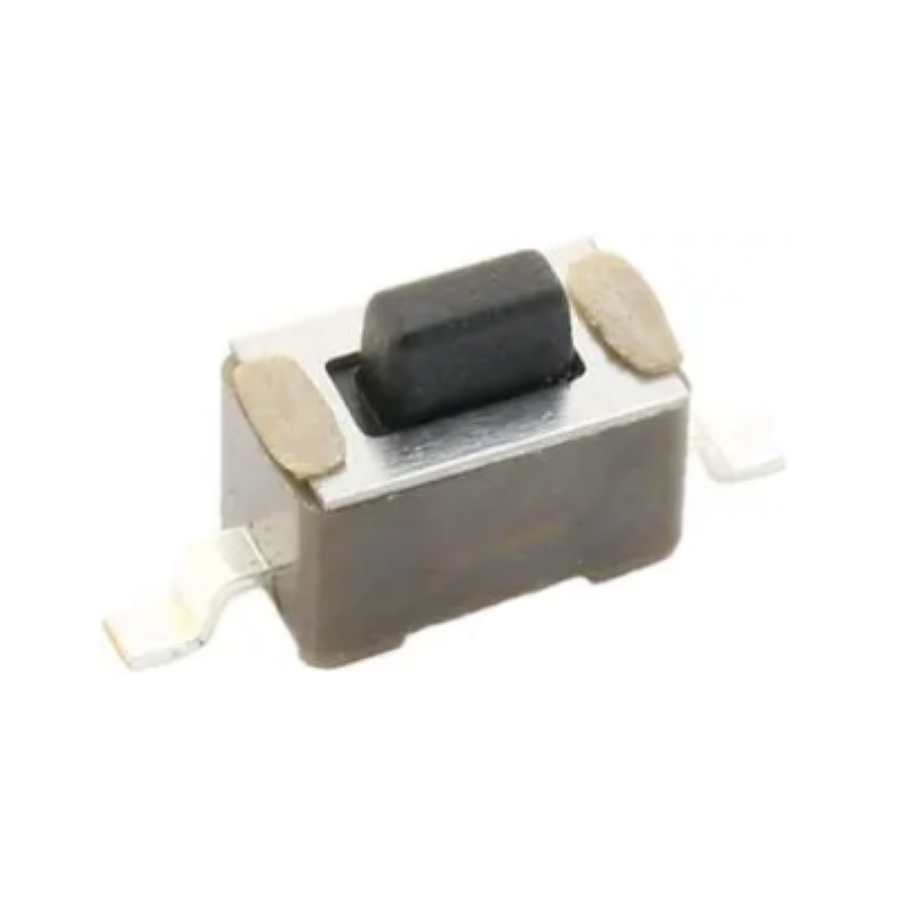

TL3302BF180QG
Manufacturer:
E-Switch
Mfr.Part #:
TL3302BF180QG
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1.8 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 1.5 mm |
| Throw Configuration | SPST |
| Housing Material | Polyphenylene |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Operating Force | 1.8 N |
| Contact Current Rating | 50 mA |
| Actuator Type | Rectangular Button |
Stock: 3288
Distributors
pcbx
pcbxUnit Price$0.43174
Ext.Price$0.43174
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43174 | $0.43174 |
| 10 | $0.37703 | $3.77030 |
| 25 | $0.34881 | $8.72025 |
| 50 | $0.33082 | $16.54100 |
| 100 | $0.31376 | $31.37600 |
| 300 | $0.29344 | $88.03200 |
| 500 | $0.27443 | $137.21500 |
| 1000 | $0.23729 | $237.29000 |
| 3000 | $0.20518 | $615.54000 |
