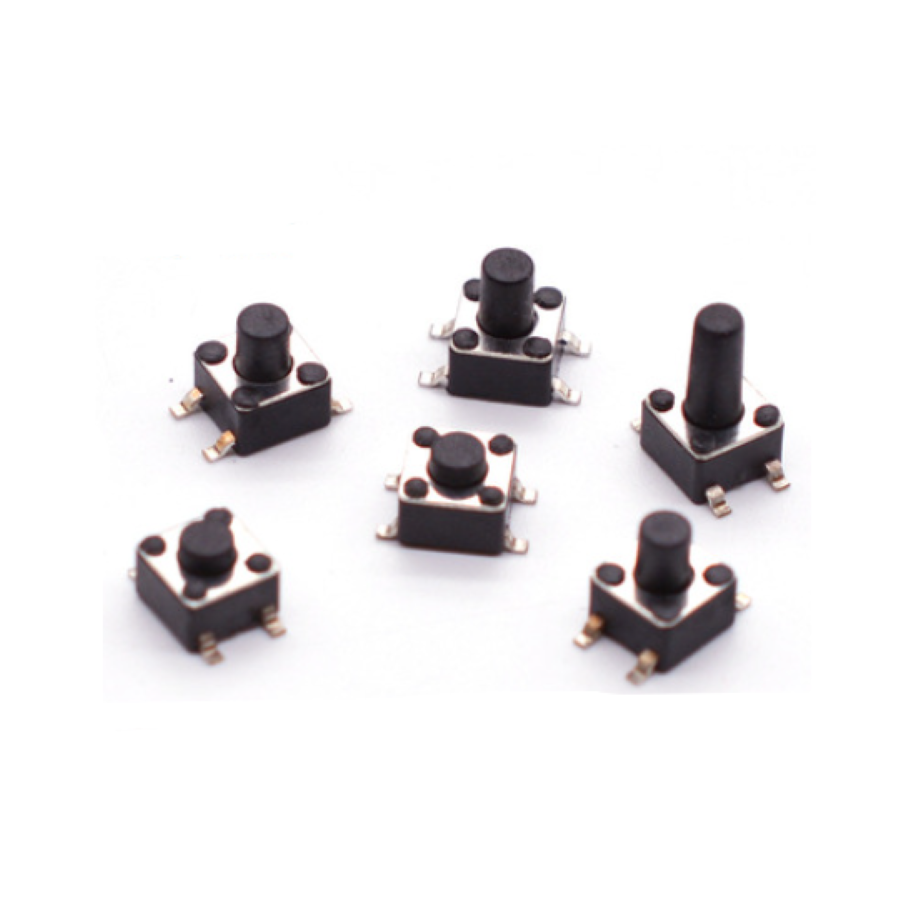

TL3305CF160QG
Manufacturer:
E-Switch
Mfr.Part #:
TL3305CF160QG
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 160 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 7.25 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Current Rating | 50 mA |
| Color | Black |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 160 gf |
| Switch Travel | 200 µm |
| Mechanical Life | 500 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Life (Cycles) | 500 kCycles |
| Mounting Direction | Straight |
Stock: 1210
Distributors
pcbx
pcbxUnit Price$0.15645
Ext.Price$0.15645
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15645 | $0.15645 |
| 10 | $0.13679 | $1.36790 |
| 50 | $0.12471 | $6.23550 |
| 100 | $0.11370 | $11.37000 |
| 500 | $0.10344 | $51.72000 |
| 1000 | $0.10003 | $100.03000 |
| 3000 | $0.09340 | $280.20000 |
| 5000 | $0.08720 | $436.00000 |
