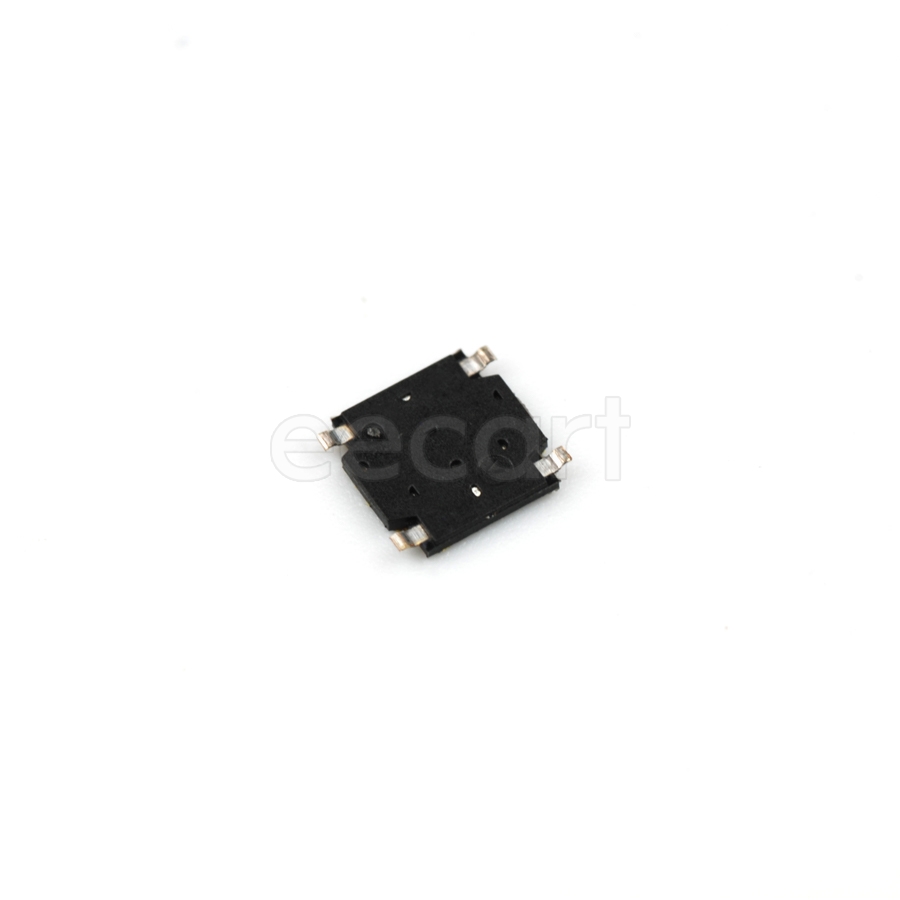

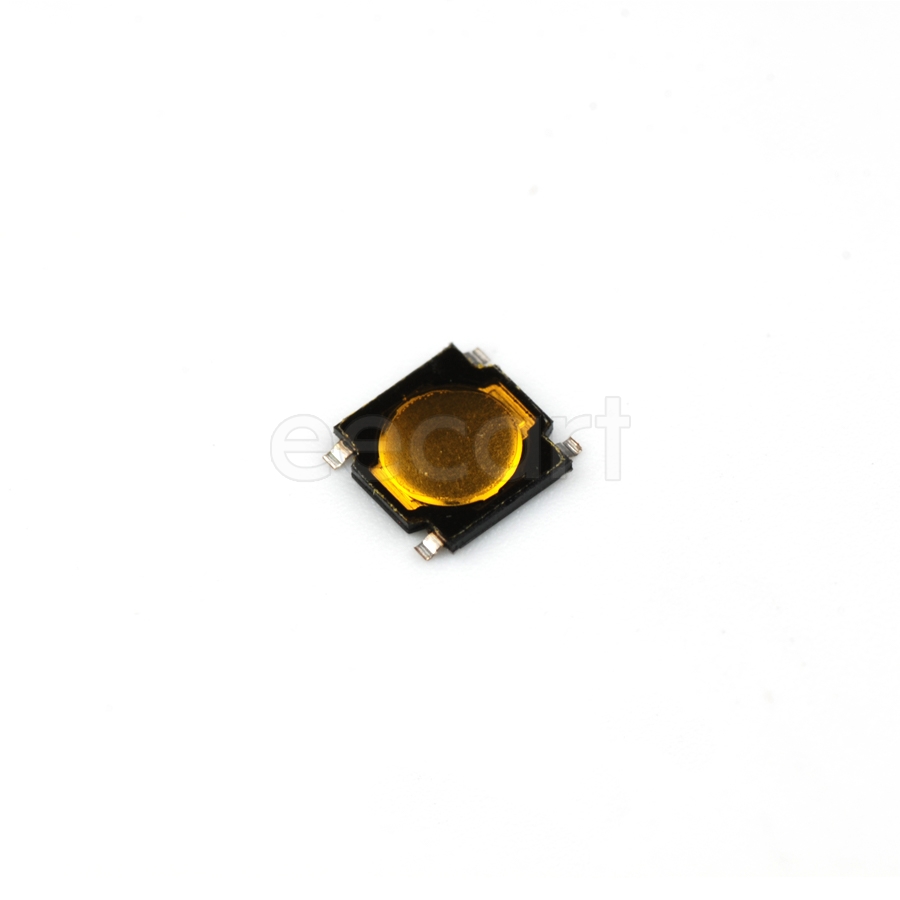

TL3315NF100Q
Manufacturer:
E-Switch
Mfr.Part #:
TL3315NF100Q
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 1 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 15 V |
| Orientation | Straight |
| Color | Yellow |
| Actuator Length | 0 m |
| Throw Configuration | SPST |
| Contact Resistance | 200 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 1 Mcycles |
| Switch Travel | 200 µm |
| Mechanical Life | 1 Mcycles |
| Mounting Direction | Straight |
| Operating Force | 1 N |
| Packaging | Reel |
| Actuator Type | Snap Dome |
Stock: 40850
Distributors
pcbx
pcbxUnit Price$0.09404
Ext.Price$0.09404
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09404 | $0.09404 |
| 10 | $0.08446 | $0.84460 |
| 50 | $0.07760 | $3.88000 |
| 100 | $0.07130 | $7.13000 |
| 500 | $0.06130 | $30.65000 |
| 1000 | $0.05882 | $58.82000 |
| 3000 | $0.05493 | $164.79000 |
| 5000 | $0.05130 | $256.50000 |
