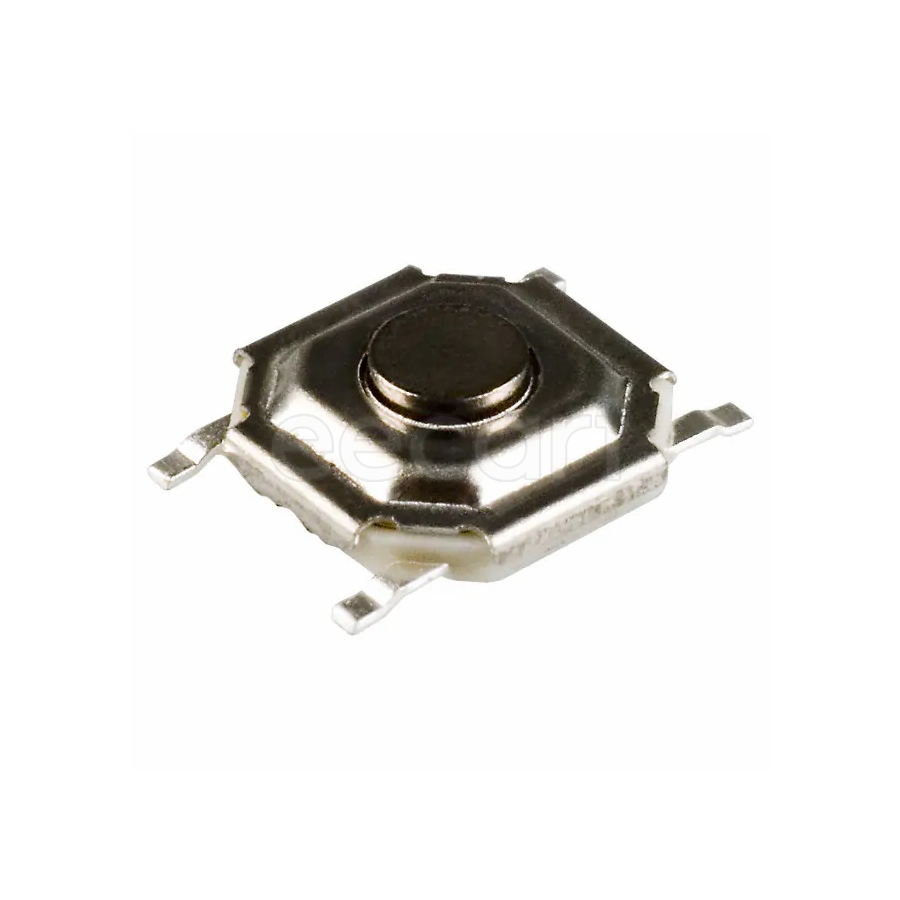

TL3342F260QG
Manufacturer:
E-Switch
Mfr.Part #:
TL3342F260QG
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 2.6 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Circuit Type | SPST-NO |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze, Silver |
| Current Rating | 15 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 300 µm |
| Throw Configuration | SPST |
| Housing Material | Polyphenylene |
| Contact Resistance | 20 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Actuator Material | Polyphenylene |
| Mechanical Life | 100 kcycles |
| Mounting Direction | Straight |
| Cap Color | Gold |
| Actuator Type | Standard |
| Packaging | Reel |
| Operating Force | 2.6 gf |
