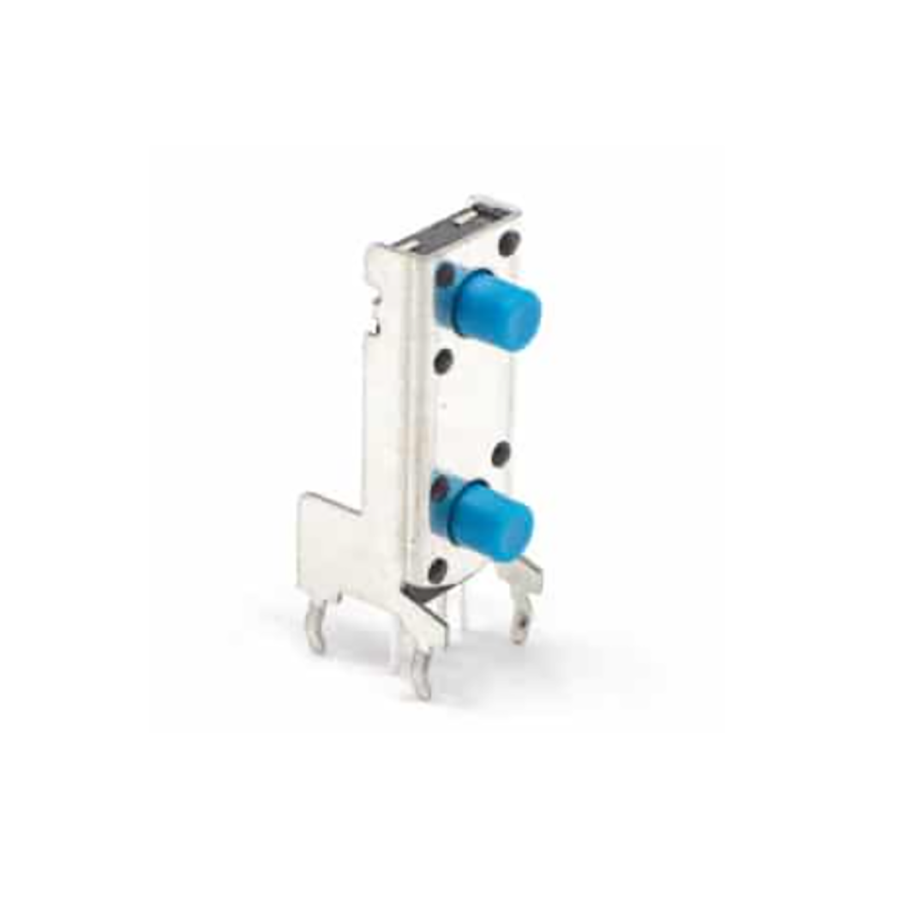

TL53HF160Q
Manufacturer:
E-Switch
Mfr.Part #:
TL53HF160Q
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1.6 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Throw Configuration | SPST |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 1.6 N |
| Switch Travel | 250 µm |
| Actuator Material | Acetal |
| Mechanical Life | 100 kcycles |
| Actuator Type | Dual |
Stock: 2201
Distributors
pcbx
pcbxUnit Price$0.81390
Ext.Price$0.81390
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.81390 | $0.81390 |
| 10 | $0.76571 | $7.65710 |
| 25 | $0.72037 | $18.00925 |
| 50 | $0.67771 | $33.88550 |
| 100 | $0.63758 | $63.75800 |
| 300 | $0.59983 | $179.94900 |
| 500 | $0.56431 | $282.15500 |
| 1000 | $0.53091 | $530.91000 |
