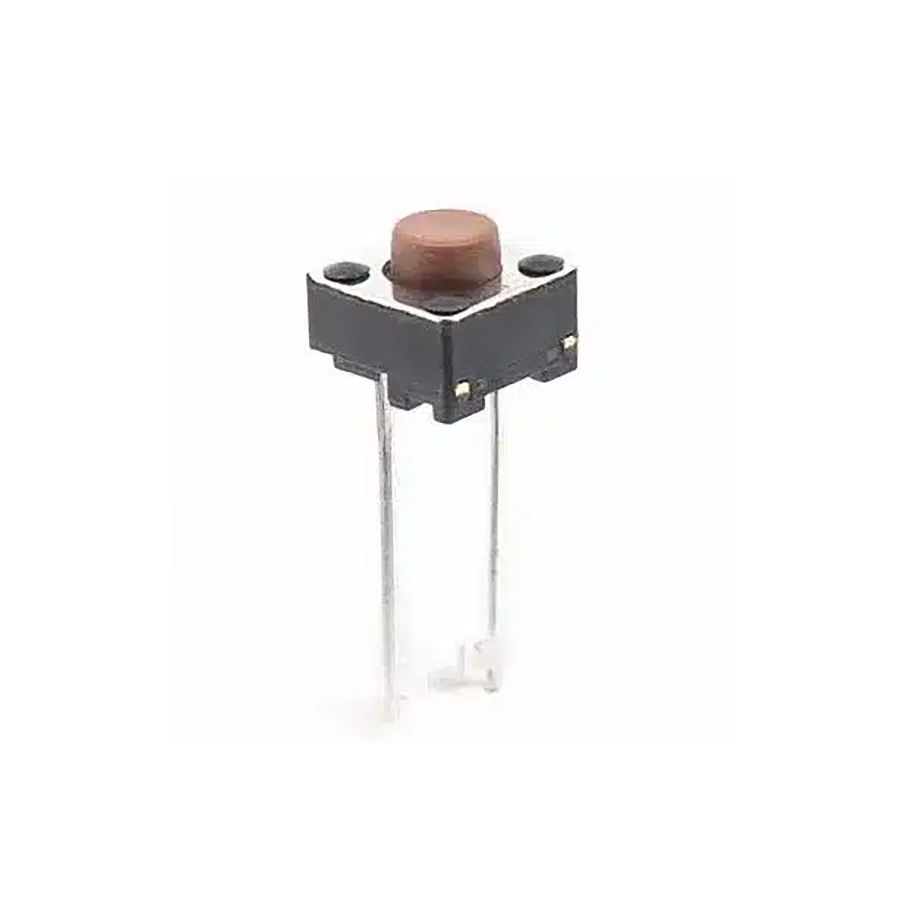

TL59AF160Q
Manufacturer:
E-Switch
Mfr.Part #:
TL59AF160Q
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1.6 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 1.4 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.6 N |
| Switch Travel | 250 µm |
| Actuator Material | PBT, Polybutylene |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
Stock: 2235
Distributors
pcbx
pcbxUnit Price$0.18809
Ext.Price$0.18809
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18809 | $0.18809 |
| 10 | $0.16329 | $1.63290 |
| 50 | $0.14945 | $7.47250 |
| 100 | $0.13679 | $13.67900 |
| 500 | $0.12226 | $61.13000 |
| 1000 | $0.11541 | $115.41000 |
| 3000 | $0.10465 | $313.95000 |
| 5000 | $0.09490 | $474.50000 |
