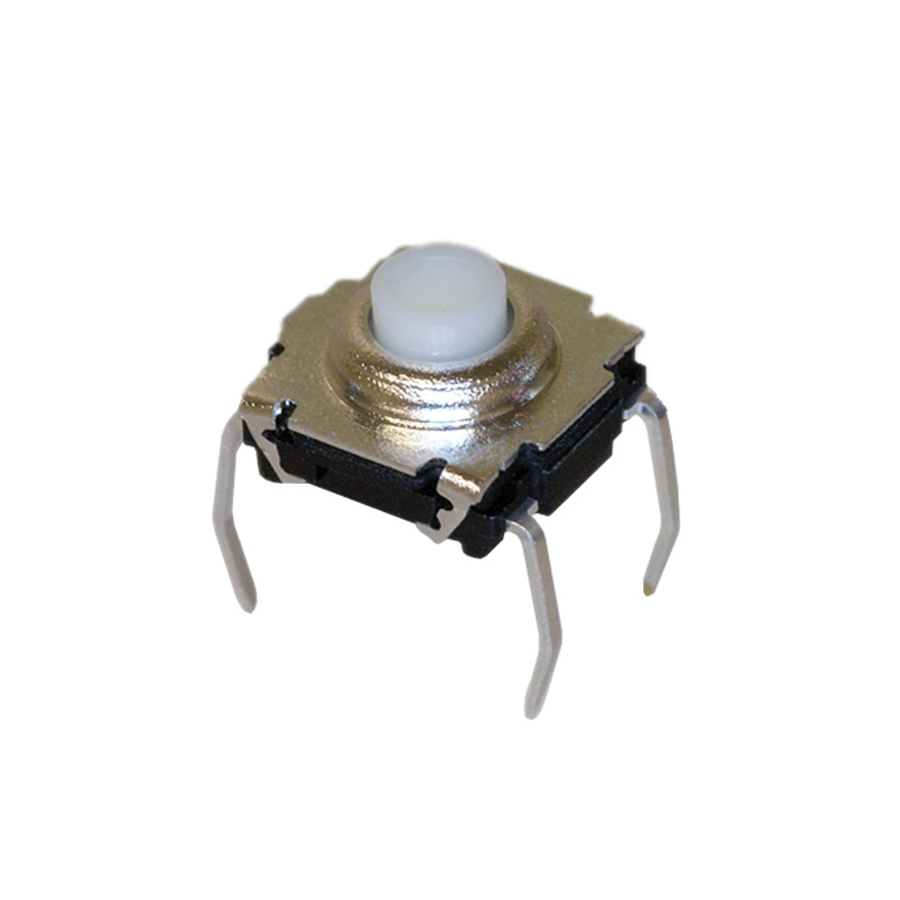

TL6100DF160QP
Manufacturer:
E-Switch
Mfr.Part #:
TL6100DF160QP
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1.6 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 7.2 mm |
| Width | 7.2 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Circuit Type | SPST-NO |
| Packaging | Tube |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 6.4 mm |
| Throw Configuration | SPST |
| Housing Material | Nylon |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 1 Mcycles |
| Operating Force | 1.6 N |
| Switch Travel | 500 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 80 kcycles |
| Actuator Type | Standard |
| Mounting Direction | Straight |
Stock: 501
Distributors
pcbx
pcbxUnit Price$0.61283
Ext.Price$0.61283
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.61283 | $0.61283 |
| 10 | $0.52181 | $5.21810 |
| 25 | $0.48665 | $12.16625 |
| 50 | $0.45386 | $22.69300 |
| 100 | $0.42328 | $42.32800 |
| 300 | $0.39475 | $118.42500 |
| 500 | $0.37411 | $187.05500 |
| 1000 | $0.35455 | $354.55000 |
| 3000 | $0.33601 | $1008.03000 |
| 5000 | $0.31845 | $1592.25000 |
