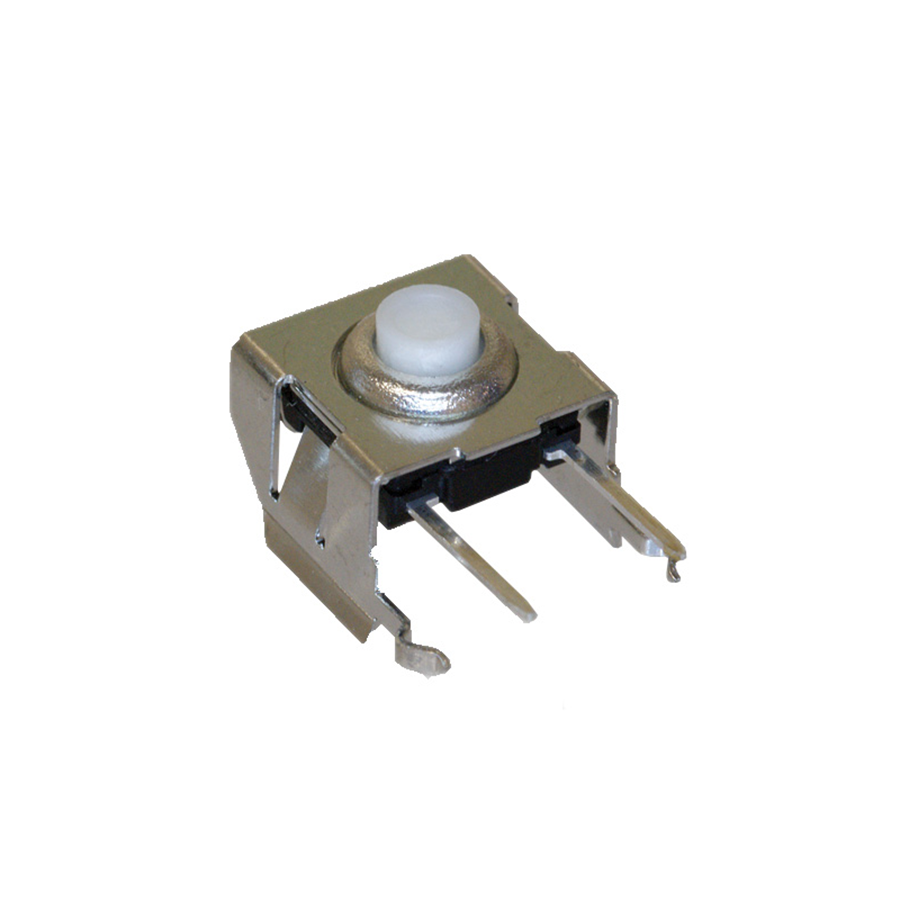

TL6110AF300QP
Manufacturer:
E-Switch
Mfr.Part #:
TL6110AF300QP
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 2.9 N Right Angle
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Circuit Type | SPST-NO |
| Packaging | Tube |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze, Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 50 V |
| Orientation | Right Angle |
| Throw Configuration | SPST |
| Housing Material | Nylon |
| Contact Resistance | 50 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Operating Force | 2.9 N |
| Switch Travel | 500 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 500 kcycles |
| Actuator Type | Standard |
| Mounting Direction | Right Angle |
