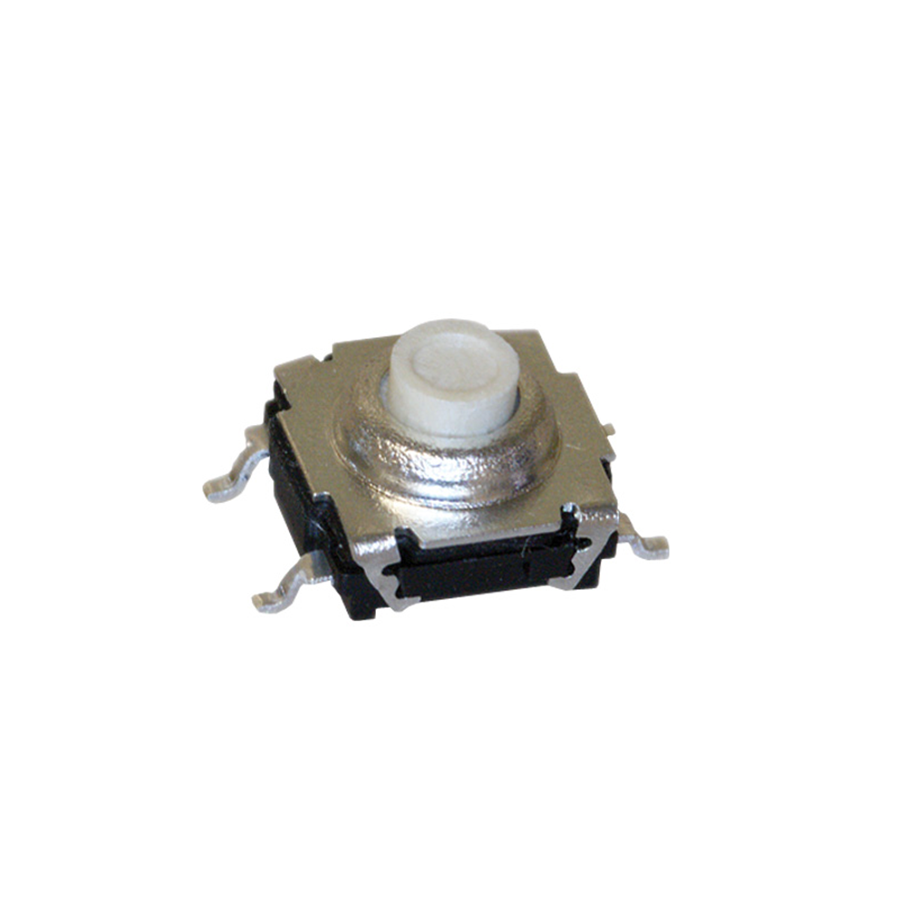

TL6120DF500QG
Manufacturer:
E-Switch
Mfr.Part #:
TL6120DF500QG
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 280 gf or 500 gf
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 50 V |
| Orientation | Straight |
| Actuator Length | 7.3 mm |
| Throw Configuration | SPST |
| Contact Resistance | 50 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 30 kcycles |
| Operating Force | 280 gf or 500 gf |
| Switch Travel | 500 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 500 kcycles |
| Actuator Type | Standard |
Stock: 3219
Distributors
pcbx
pcbxUnit Price$0.60101
Ext.Price$0.60101
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60101 | $0.60101 |
| 10 | $0.52578 | $5.25780 |
| 25 | $0.48902 | $12.22550 |
| 50 | $0.46175 | $23.08750 |
| 100 | $0.43601 | $43.60100 |
| 300 | $0.36974 | $110.92200 |
| 500 | $0.31354 | $156.77000 |
| 1000 | $0.26588 | $265.88000 |
