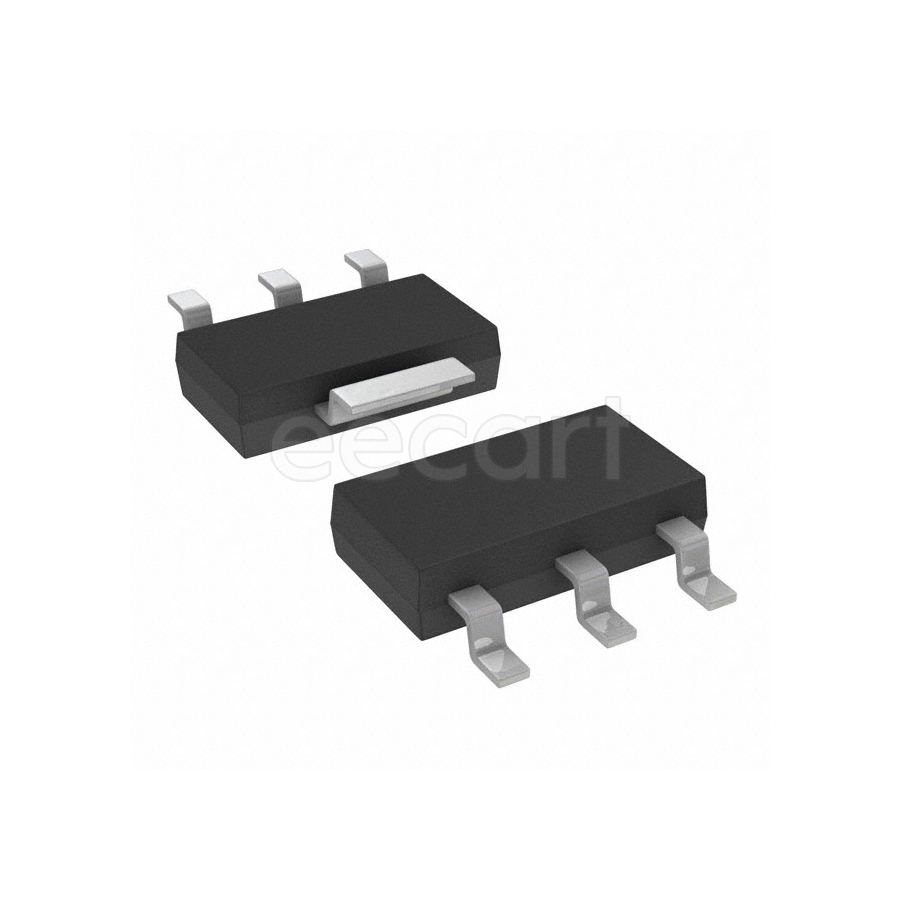

TLE42744GSV33HTMA1
Manufacturer:
Infineon
Mfr.Part #:
TLE42744GSV33HTMA1
Datasheet:
Description:
Voltage Regulators - Linear TO-261-4 SMD/SMT Positive Fixed 3.3 V 400 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Halogen Free | Not Halogen Free |
| RoHS | Compliant |
| Polarity | Positive |
| Dropout Voltage | 250 mV |
| Min Input Voltage | 4.7 V |
| Output Current | 400 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Max Supply Voltage | 40 V |
| Accuracy | 2 % |
| Quiescent Current | 20 mA |
| Max Input Voltage | 40 V |
| Min Current Limit | 400 mA |
| Nominal Output Voltage | 3.3 V |
| Watchdog Timer | No Watchdog |
| Number of Regulators | 1 |
| Schedule B | 8542390000 |
| Package Quantity | 4000 |
| Load Regulation | 40 mV |
| Line Regulation | 10 mV |
Stock: 5320
Distributors
pcbx
pcbxUnit Price$1.10157
Ext.Price$1.10157
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.10157 | $1.10157 |
| 10 | $0.80840 | $8.08400 |
| 25 | $0.73506 | $18.37650 |
| 50 | $0.69369 | $34.68450 |
| 100 | $0.65466 | $65.46600 |
| 300 | $0.62314 | $186.94200 |
| 500 | $0.59314 | $296.57000 |
| 1000 | $0.57409 | $574.09000 |
| 3000 | $0.54551 | $1636.53000 |
