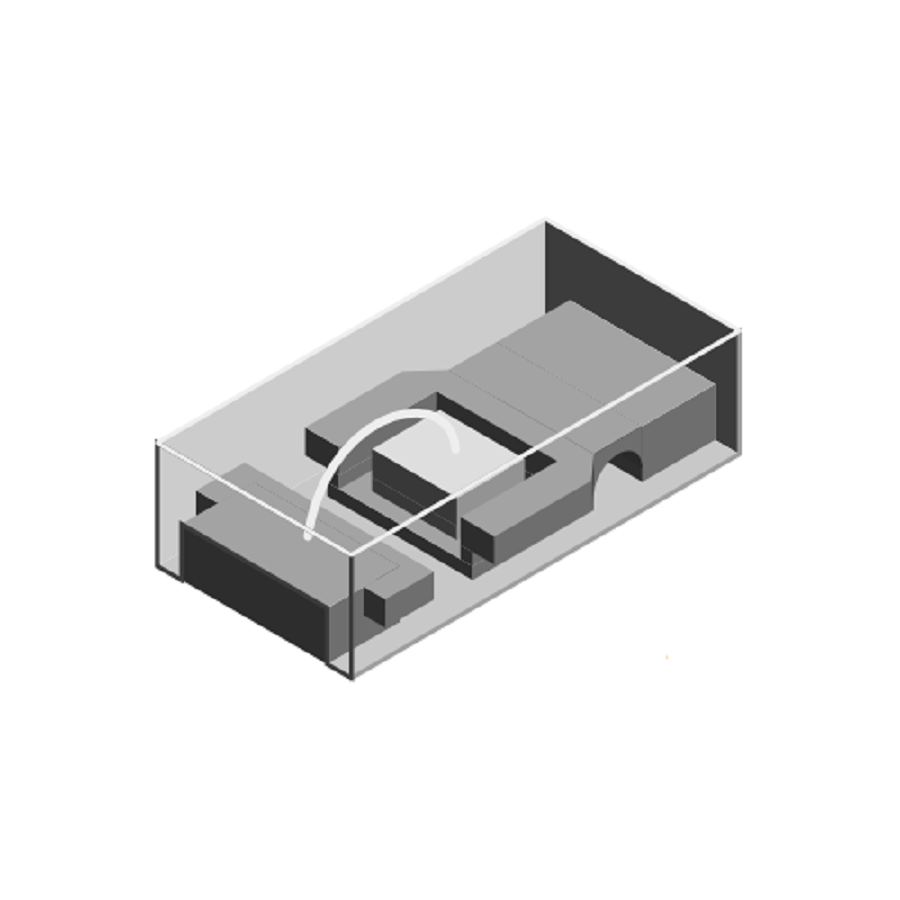

TLMS1000-GS08
Manufacturer:
Vishay
Mfr.Part #:
TLMS1000-GS08
Datasheet:
Description:
LEDs 0603(1608 Metric) SMD/SMT Red 628 nm 2 mA 1.8 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 800 µm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Number of Pins | 2 |
| Power Rating | 40 mW |
| Height | 600 µm |
| Packaging | Reel |
| Depth | 800 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Number of Elements | 1 |
| Forward Current | 2 mA |
| Forward Voltage | 1.8 V |
| Max Power Dissipation | 40 mW |
| Color | Red |
| Illumination Color | Red |
| Lens Style | Rectangular |
| Luminous Intensity | 4 mcd |
| Power Dissipation | 40 mW |
| Ambient Temperature Range High | 100 °C |
| Number of LEDs | 1 |
| Viewing Angle | 160 ° |
| Wavelength | 628 nm |
| Lens Transparency | Non-Diffused |
| Lens Color | Red |
| Peak Wavelength | 640 nm |
| Dominant Wavelength/CCT (K) | 628 nm |
| Reverse Voltage | 6 V |
| Test Current | 2 mA |
| Max Junction Temperature (Tj) | 120 °C |
| Schedule B | 8541402000 |
