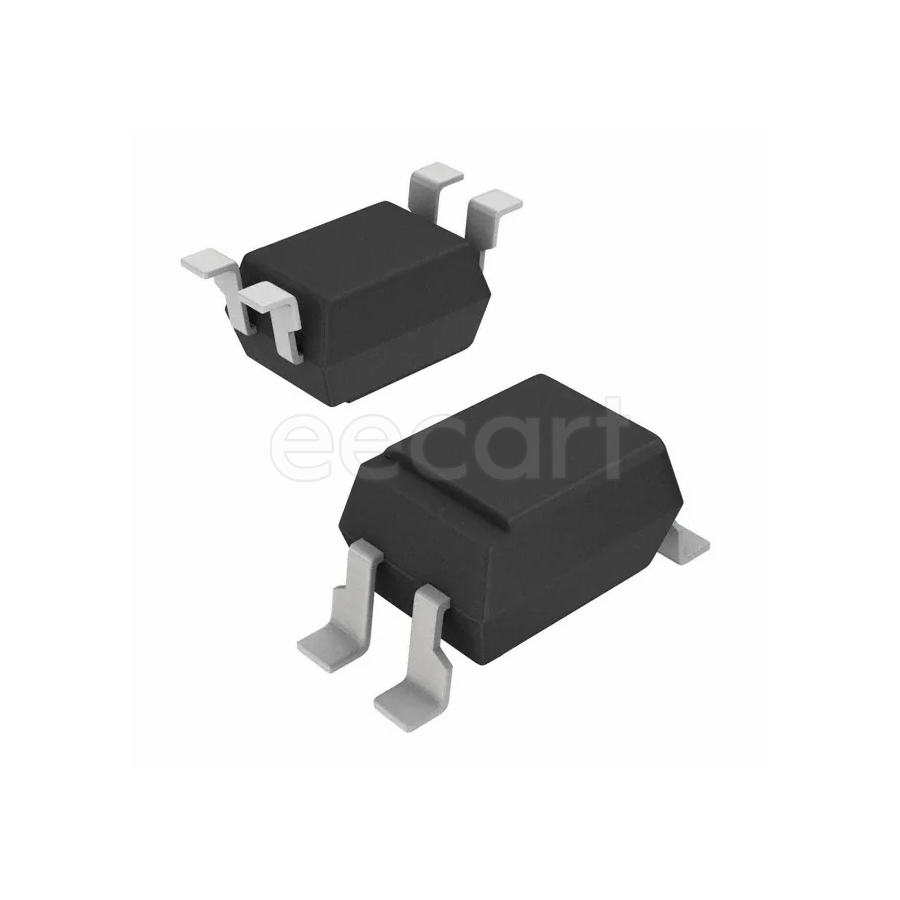

TLP126(TPR,F)
Manufacturer:
Toshiba
Mfr.Part #:
TLP126(TPR,F)
Datasheet:
Description:
Optocouplers SMD/SMT-4 SMD/SMT number of channels:1 Transistor 50 mA 1.3 V Rise Time:8 µs Fall Time :8 µs
| Parameter | Value |
|---|---|
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Output Voltage | 80 V |
| Number of Circuits | 1 |
| Forward Current | 50 mA |
| Forward Voltage | 1.3 V |
| Output Type | Transistor |
| Max Power Dissipation | 200 mW |
| Power Dissipation | 200 mW |
| Number of Channels | 1 |
| Max Collector Current | 50 mA |
| Fall Time | 8 µs |
| Rise Time | 8 µs |
| Collector Emitter Voltage (VCEO) | 80 V |
| Isolation Voltage | 3.75 kV |
| Current Transfer Ratio | 1200 % |
| Output Current per Channel | 50 mA |
| Max Input Current | 50 mA |
| Max Output Voltage | 80 V |
| Collector Emitter Saturation Voltage | 400 mV |
