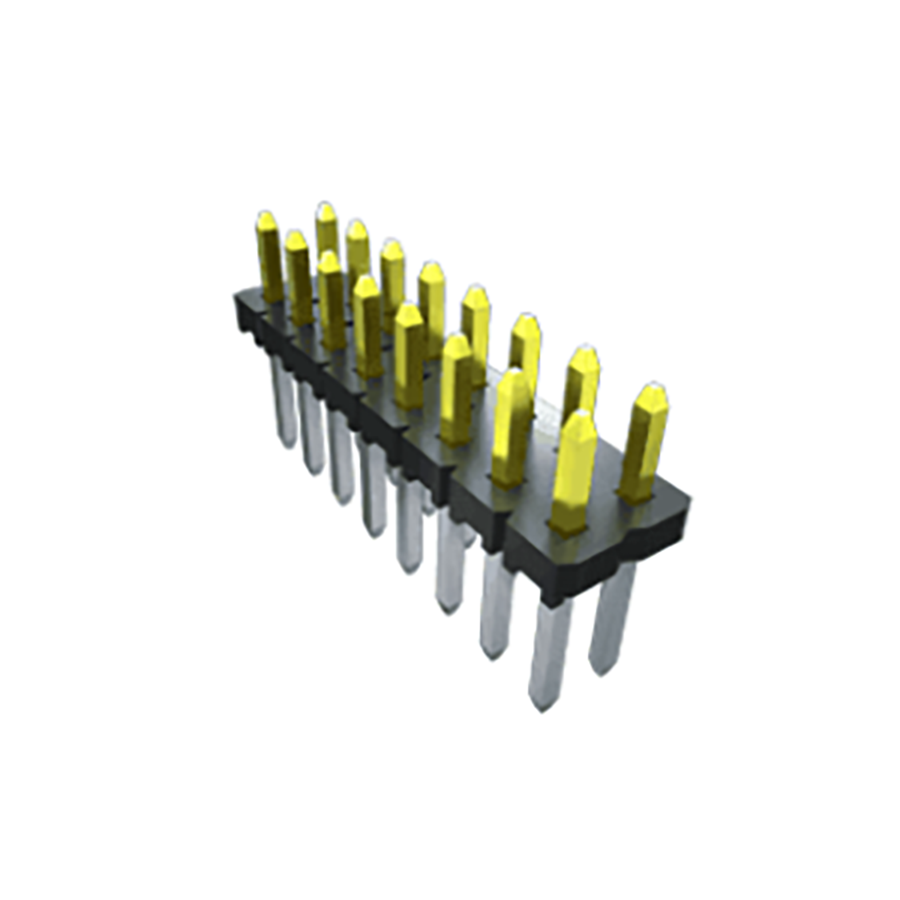

TLW-120-06-T-D
Manufacturer:
Samtec
Mfr.Part #:
TLW-120-06-T-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 50.8 mm |
| Width | 5.03 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 1.52 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 40 |
| Connector Type | Header |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Plastic |
| Housing Color | Black |
| Contact Mating Length | 2.667 mm |
| Mating Post Length | 2.67 mm |
| Termination Post Length | 3.43 mm |
Stock: 16
Distributors
pcbx
pcbxUnit Price$2.43399
Ext.Price$2.43399
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.43399 | $2.43399 |
| 10 | $2.31210 | $23.12100 |
| 25 | $2.19631 | $54.90775 |
| 50 | $2.04670 | $102.33500 |
| 100 | $1.94667 | $194.66700 |
| 300 | $1.67409 | $502.22700 |
| 500 | $1.43970 | $719.85000 |
| 1000 | $1.27043 | $1270.43000 |
| 3000 | $0.86192 | $2585.76000 |
| 5000 | $0.58477 | $2923.85000 |
