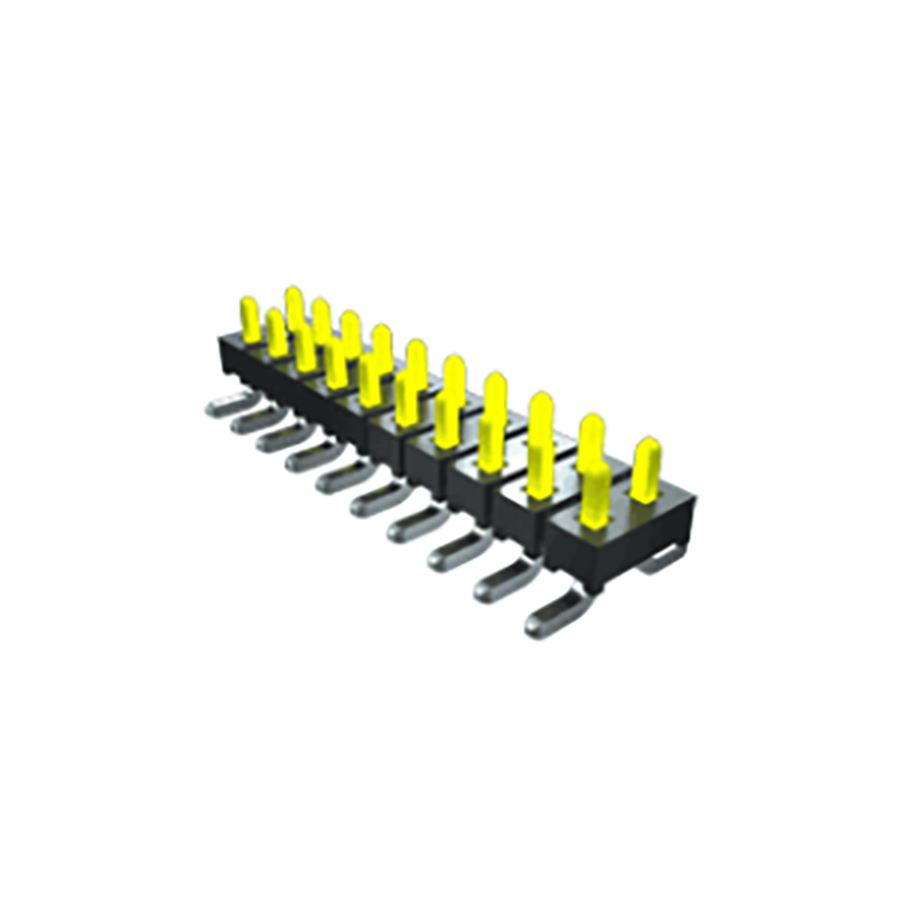

TMM-105-01-G-S-SM
Manufacturer:
Samtec
Mfr.Part #:
TMM-105-01-G-S-SM
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:5 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 500 V |
| Depth | 1.97 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 3.9 A |
| Max Current Rating | 3.9 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 5 |
| Connector Type | Header |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Black |
| Contact Mating Length | 3.2004 mm |
| Mating Post Length | 3.2 mm |
Stock: 176
Distributors
pcbx
pcbxUnit Price$0.68822
Ext.Price$0.68822
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68822 | $0.68822 |
| 10 | $0.58591 | $5.85910 |
| 25 | $0.49881 | $12.47025 |
| 50 | $0.42466 | $21.23300 |
| 100 | $0.36153 | $36.15300 |
| 300 | $0.30778 | $92.33400 |
| 500 | $0.26203 | $131.01500 |
| 1000 | $0.22308 | $223.08000 |
| 3000 | $0.18992 | $569.76000 |
| 5000 | $0.16169 | $808.45000 |
| 10000 | $0.13764 | $1376.40000 |
