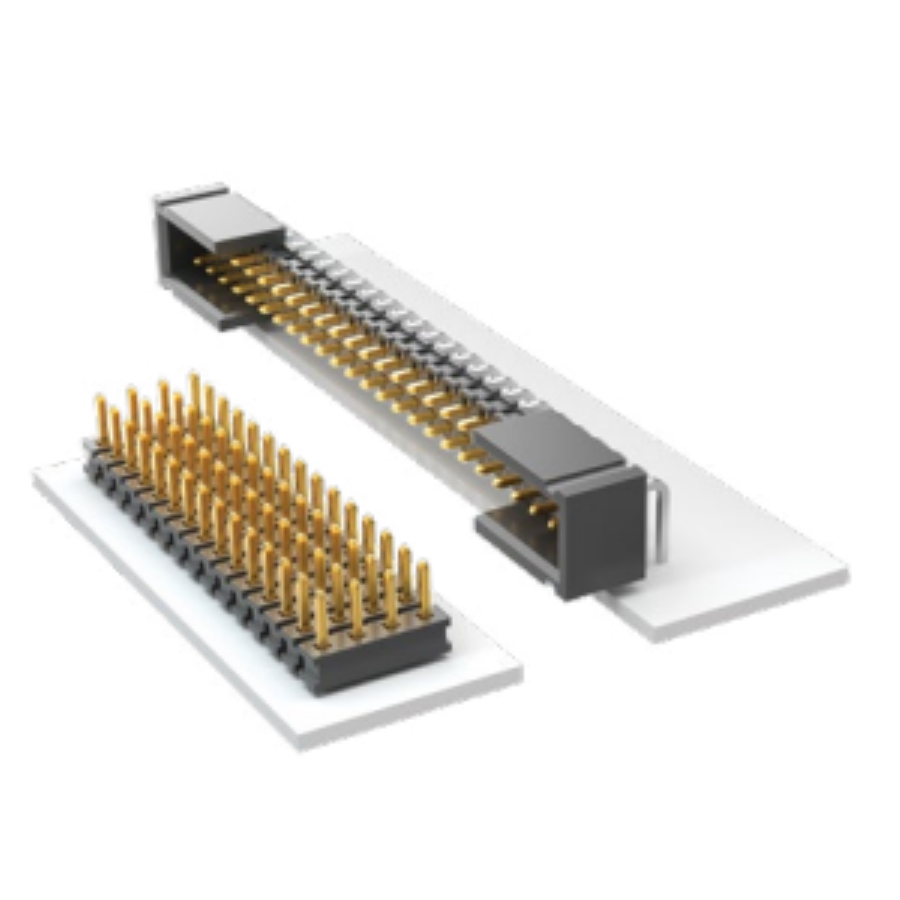

TMMH-140-01-F-T
Manufacturer:
Samtec
Mfr.Part #:
TMMH-140-01-F-T
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Cuttable Number of Positions:120 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 80 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Max Current Rating | 5.5 A |
| Orientation | Straight |
| Gender | Pin (Male) |
| Number of Contacts | 120 |
| Connector Type | Header, Cuttable |
| Number of Positions | 120 |
| Number of Rows | 3 |
| Row Spacing | 2 mm |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Black |
| Mating Post Length | 3.2 mm |
| Termination Post Length | 2.47 mm |
Stock: 61
Distributors
pcbx
pcbxUnit Price$6.72595
Ext.Price$6.72595
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.72595 | $6.72595 |
| 10 | $6.21943 | $62.19430 |
| 25 | $5.88152 | $147.03800 |
| 50 | $5.66879 | $283.43950 |
| 100 | $4.27349 | $427.34900 |
| 300 | $4.03536 | $1210.60800 |
| 500 | $3.81050 | $1905.25000 |
| 1000 | $2.98486 | $2984.86000 |
