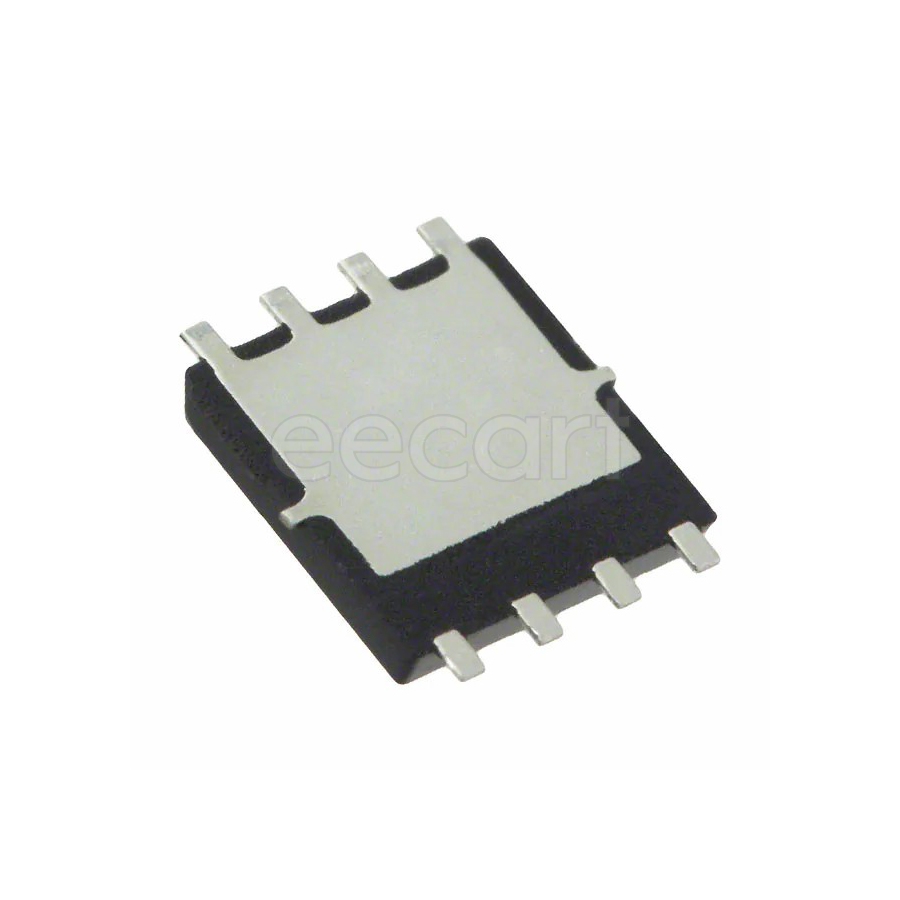

TPH8R80ANH,L1Q
Manufacturer:
Toshiba
Mfr.Part #:
TPH8R80ANH,L1Q
Datasheet:
Description:
Transistors SOP-8 SMD/SMT Max Power Dissipation:61 W
| Parameter | Value |
|---|---|
| Number of Pins | 8 |
| Packaging | Reel |
| RoHS | Compliant |
| Max Power Dissipation | 61 W |
| Power Dissipation | 61 W |
| Input capacitance | 2.8 nF |
| Continuous Drain Current (ID) | 32 A |
| Rds On Max | 8.8 mΩ |
| Drain to Source Voltage (Vdss) | 100 V |
| Turn-Off Delay Time | 33 ns |
| Element Configuration | Single |
| Rise Time | 7 ns |
| Drain to Source Resistance | 7.4 mΩ |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | 100 V |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Collector Emitter Breakdown Voltage | 100 V |
| Polarity | N-Channel |
Stock: 5623
Distributors
pcbx
pcbxUnit Price$1.07037
Ext.Price$1.07037
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.07037 | $1.07037 |
| 10 | $0.87630 | $8.76300 |
| 25 | $0.77753 | $19.43825 |
| 50 | $0.68989 | $34.49450 |
| 100 | $0.61213 | $61.21300 |
| 300 | $0.57918 | $173.75400 |
| 500 | $0.54801 | $274.00500 |
| 1000 | $0.51980 | $519.80000 |
| 3000 | $0.48210 | $1446.30000 |
| 5000 | $0.44713 | $2235.65000 |
