TPS7A7001DDAR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS7A7001DDAR
Datasheet:
Description:

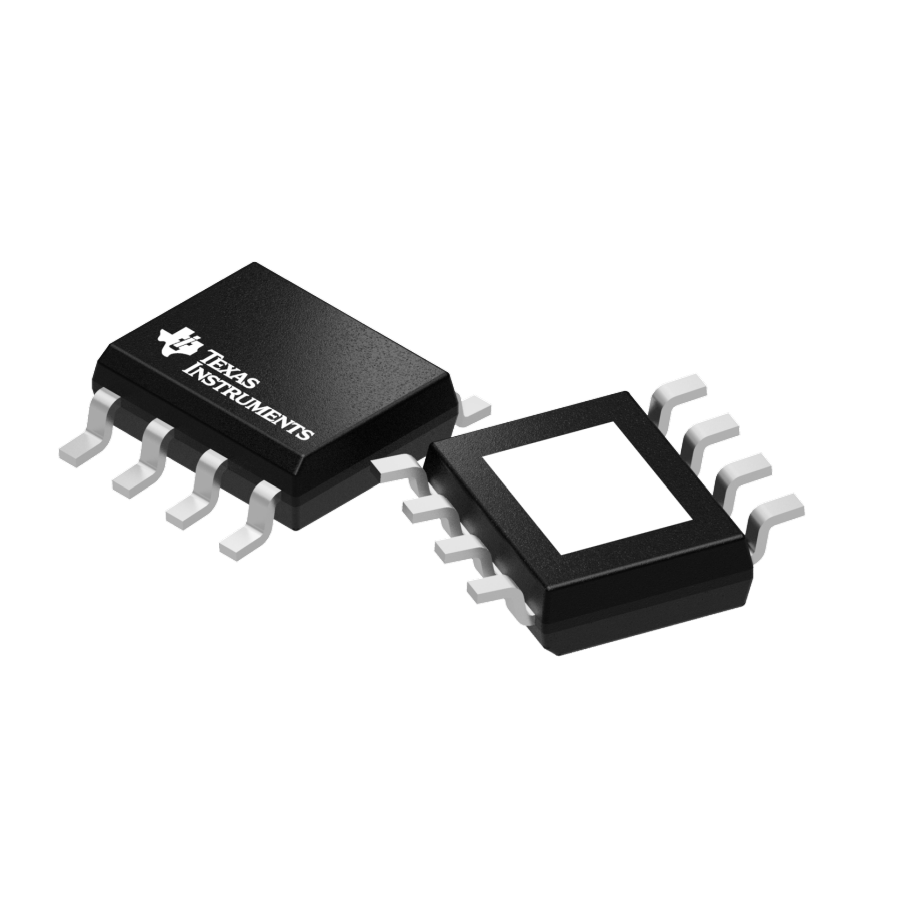

Voltage Regulators - Linear SOIC-8 EP SMD/SMT Positive Adjustable 5 V 2 A
| Parameter | Value |
|---|---|
| Length | 4.89 mm |
| Width | 3.9 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1.7 mm |
| Packaging | Reel |
| Thickness | 1.48 mm |
| RoHS | Compliant |
| Polarity | Positive |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Dropout Voltage | 380 mV |
| Min Input Voltage | 1.5 V |
| Output Current | 2 A |
| Output Voltage | 5 V |
| Output Type | Adjustable |
| Lifecycle Status | Active |
| Accuracy | 2 % |
| Max Output Current | 2 A |
| Quiescent Current | 10 µA |
| Max Input Voltage | 6.5 V |
| Number of Outputs | 1 |
| Min Output Voltage | 900 mV |
| Min Current Limit | 2.1 A |
| Max Output Voltage | 5 V |
| Reference Voltage | 500 mV |
| Number of Regulators | 1 |
| Output Voltage Accuracy | 3 % |
| Load Regulation | 0.75 %/A |
| Line Regulation | 0.4 %/V |
Stock: 3355
Distributors
pcbx
pcbxUnit Price$0.50669
Ext.Price$0.50669
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50669 | $0.50669 |
| 10 | $0.42077 | $4.20770 |
| 25 | $0.38181 | $9.54525 |
| 50 | $0.34646 | $17.32300 |
| 100 | $0.31438 | $31.43800 |
| 300 | $0.30602 | $91.80600 |
| 500 | $0.29789 | $148.94500 |
| 1000 | $0.28896 | $288.96000 |
