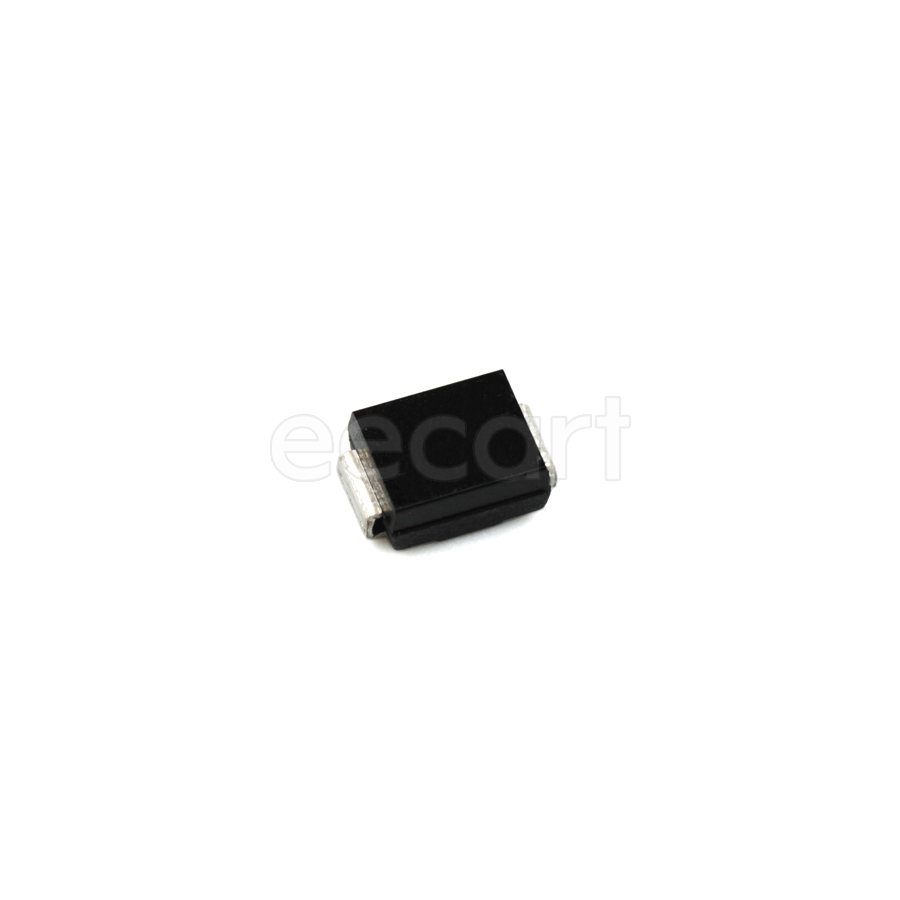

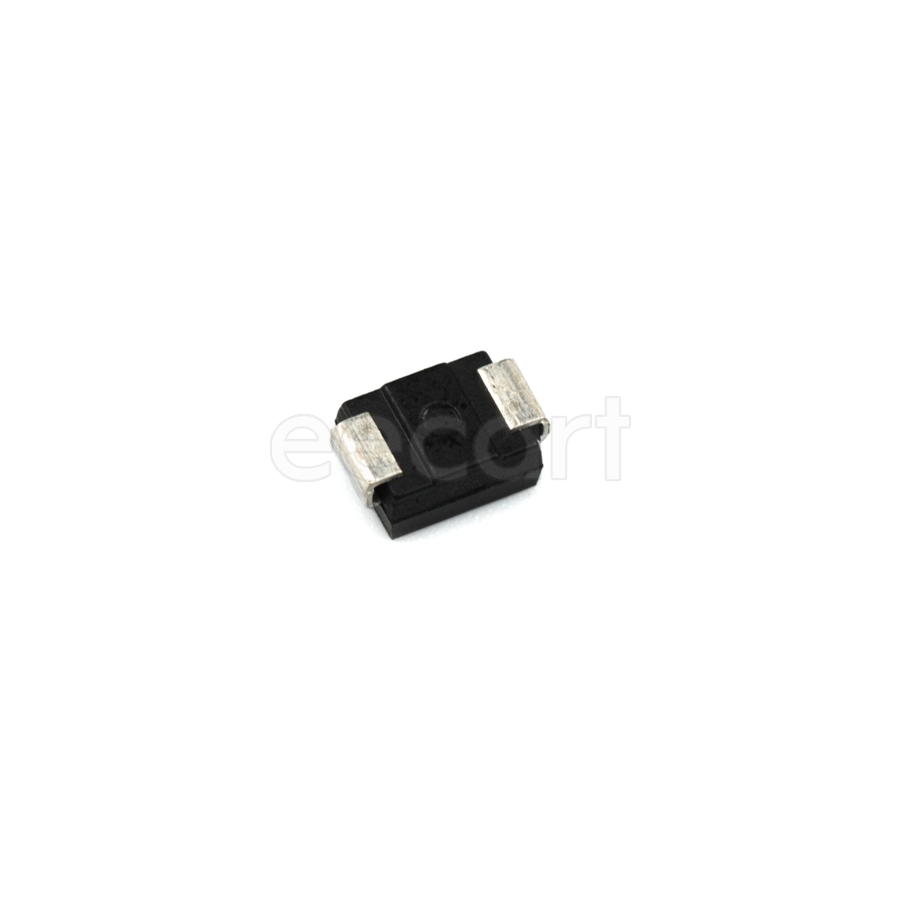

TPSMB30CA
Manufacturer:
Littelfuse
Mfr.Part #:
TPSMB30CA
Datasheet:
Description:
TVS Diodes DO214AA-2 SMD/SMT Working Voltage:25.6 V Breakdown Voltage:28.5 V Clamping Voltage:41.4 V Peak Pulse Power:600 W Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -65 °C |
| RoHS | Compliant |
| Clamping Voltage | 41.4 V |
| Number of Channels | 1 |
| Peak Pulse Current | 14.7 A |
| Breakdown Voltage | 28.5 V |
| Peak Pulse Power | 600 W |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
| Packaging | Reel |
| Working Voltage | 25.6 V |
| Polarity | Bidirectional |
Stock: 5904
Distributors
pcbx
pcbxUnit Price$0.14363
Ext.Price$0.14363
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14363 | $0.14363 |
| 10 | $0.11969 | $1.19690 |
| 50 | $0.11534 | $5.76700 |
| 100 | $0.11114 | $11.11400 |
| 500 | $0.10638 | $53.19000 |
| 1000 | $0.10182 | $101.82000 |
| 3000 | $0.09746 | $292.38000 |
| 5000 | $0.09398 | $469.90000 |
| 10000 | $0.09063 | $906.30000 |
