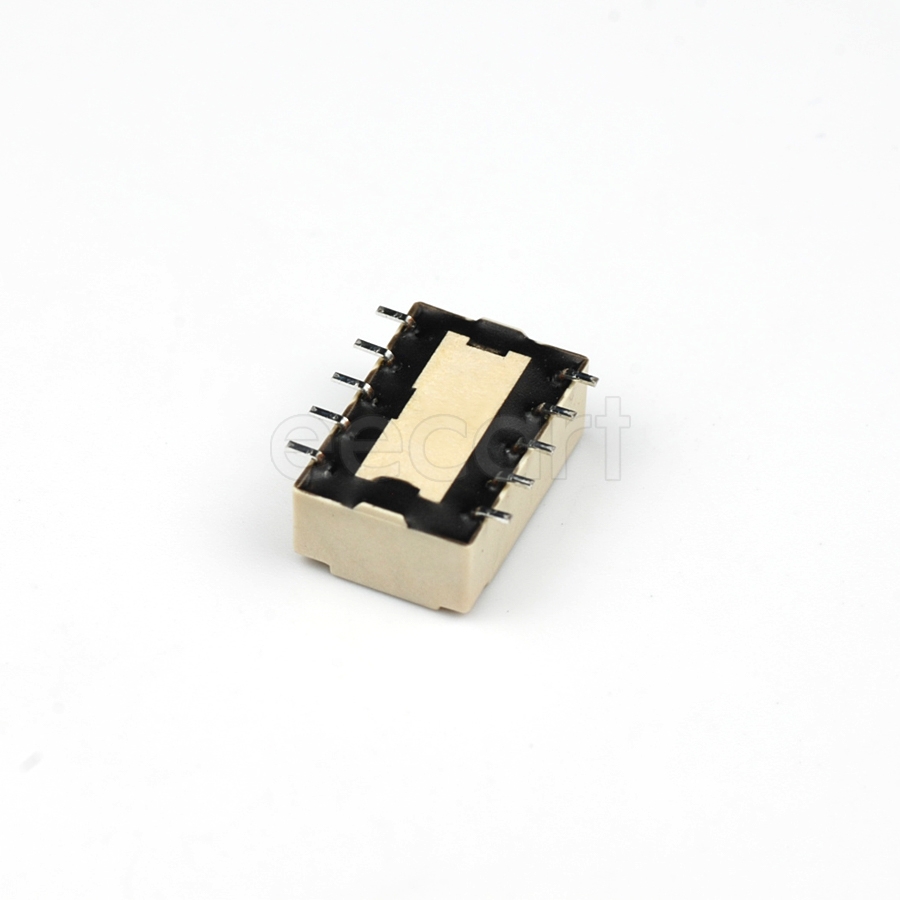

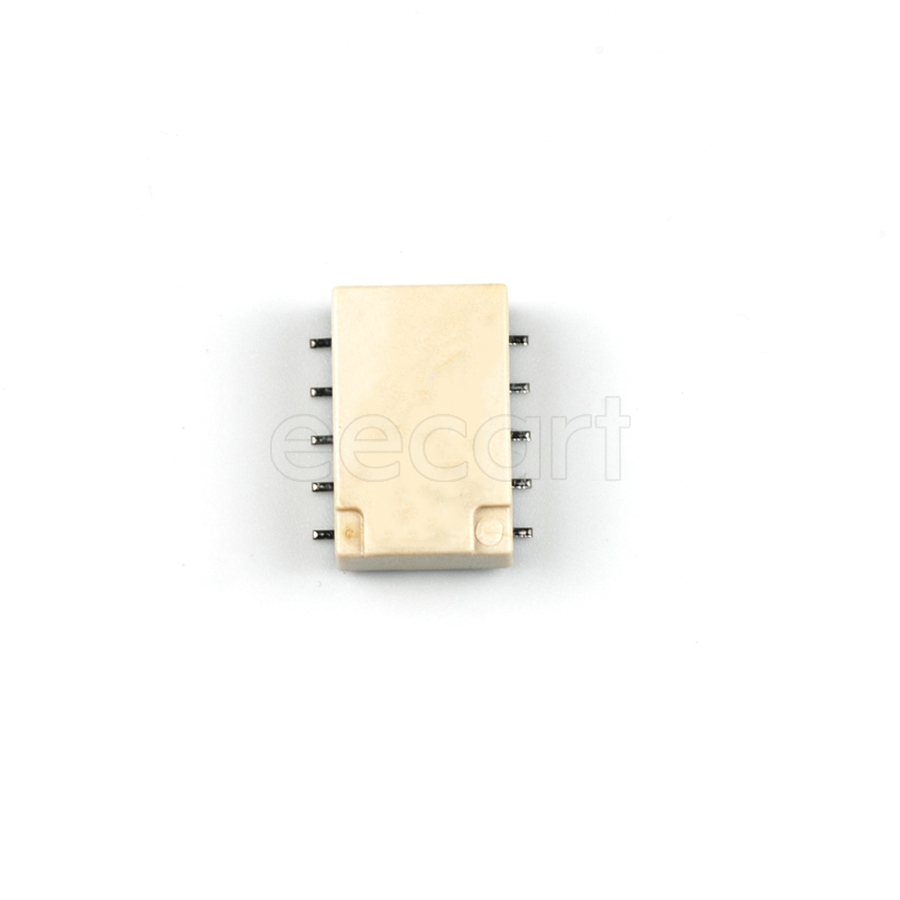

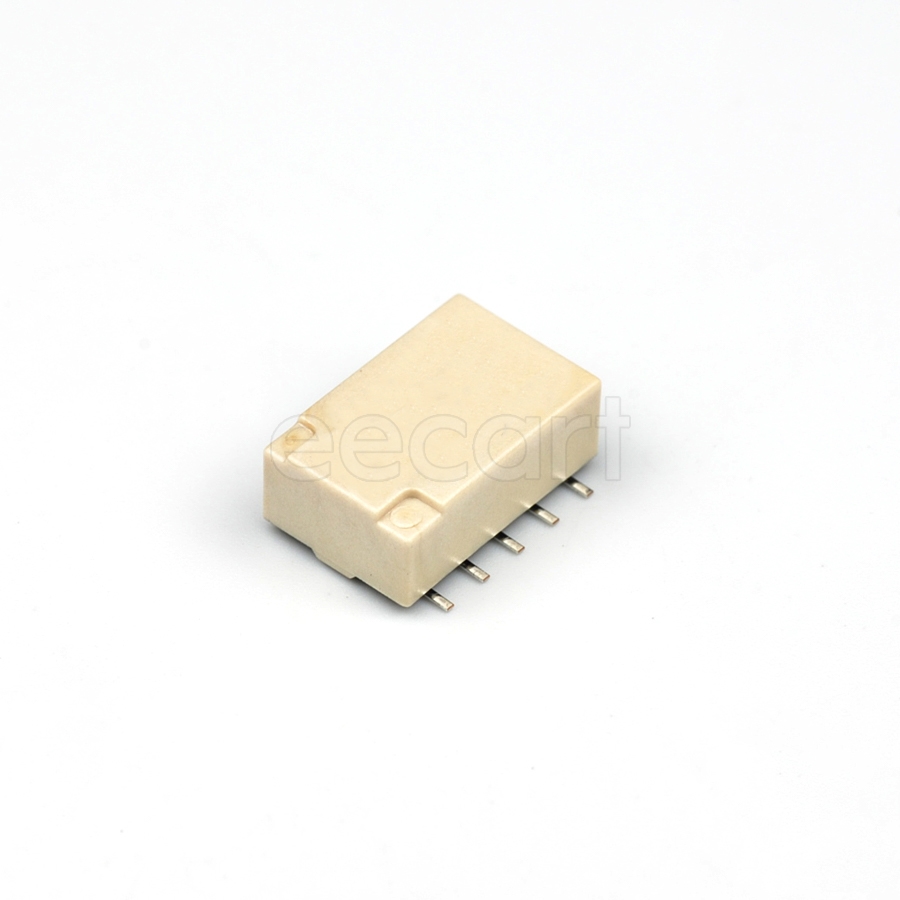

TQ2SA-12V
Manufacturer:
Panasonic
Mfr.Part #:
TQ2SA-12V
Datasheet:
Description:
Signal Relays SMD/SMT 11.7 mA Non-Latching Coil Voltage (DC):12 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 14 mm |
| Width | 8.99 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 10 |
| Power Rating | 60 W |
| Height | 5.59 mm |
| Packaging | Tube |
| Depth | 11.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 2 g |
| Ratings | IP67 |
| Contact Plating | Gold, Silver |
| Contact Material(Contact Finish) | Silver |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 220 V |
| Approvals | CSA, UL |
| Insertion Loss (dB) | 0.8 dB |
| Throw Configuration | DPDT |
| Contact Resistance | 75 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 11.7 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 1.028 kΩ |
| Relay Type | Telecom |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Contact Current Rating | 2 A |
| switching current | 2 A |
| power consumption | 140 mW |
| Termination Style | Gull Wing Lead |
| Switching Voltage | 220 V |
| Test Voltage | 1.5 kV |
| Coil Power | 140 mW |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 1.2 V |
| Contact Form | DPDT |
