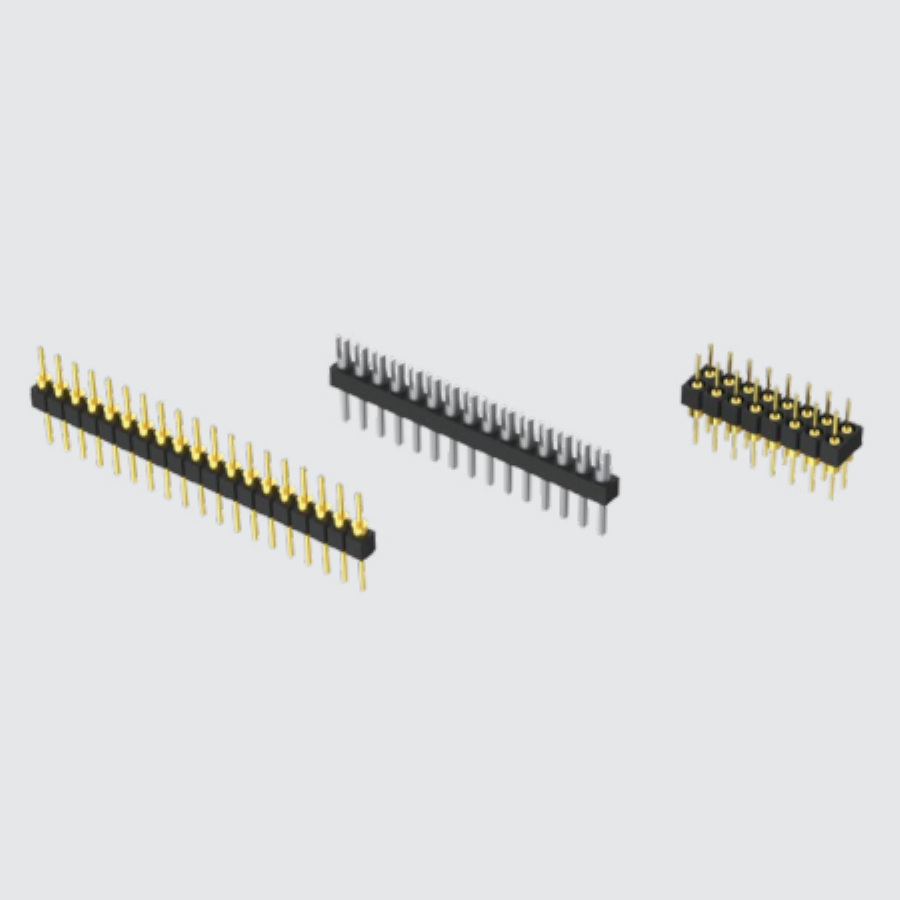

TS-102-T-A
Manufacturer:
Samtec
Mfr.Part #:
TS-102-T-A
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Housing Color | Black |
| Contact Mating Length | 4.2164 mm |
| Mating Post Length | 4.22 mm |
| Termination Post Length | 3.96 mm |
Stock: 13
Distributors
pcbx
pcbxUnit Price$0.51062
Ext.Price$0.51062
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51062 | $0.51062 |
| 10 | $0.49843 | $4.98430 |
| 25 | $0.49506 | $12.37650 |
| 50 | $0.49172 | $24.58600 |
| 100 | $0.48840 | $48.84000 |
