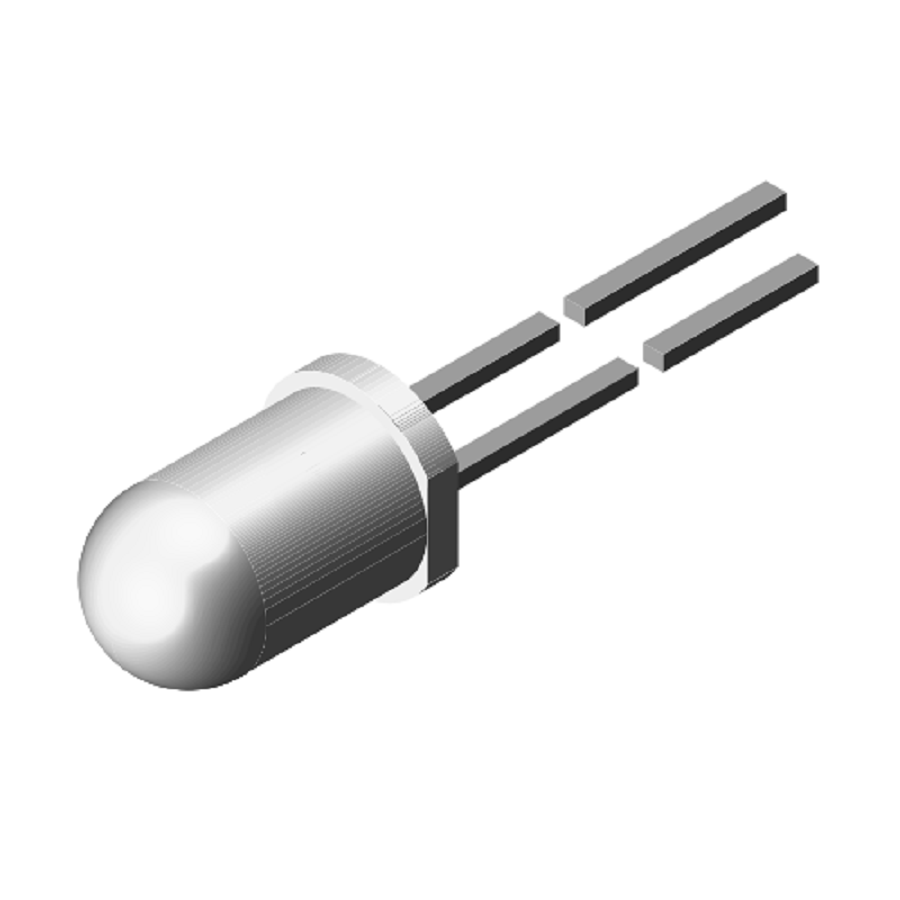

TSAL6200
Manufacturer:
Vishay
Mfr.Part #:
TSAL6200
Datasheet:
Description:
LEDs Radial, 5mm Dia (T 1 3/4) Through Hole Infrared 940 nm 100 mA 1.35 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Length | 5.8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Power Rating | 210 mW |
| Packaging | Bulk |
| Depth | 5.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Lead Length | 25.7 mm |
| Number of Elements | 1 |
| Orientation | Top View |
| Forward Current | 100 mA |
| Forward Voltage | 1.35 V |
| Operating Supply Voltage | 1.6 V |
| Max Power Dissipation | 160 mW |
| Illumination Color | Infrared |
| Lens Style | Circular, Colored, Round |
| Power Dissipation | 160 mW |
| Rise Time | 800 ns |
| Number of LEDs | 1 |
| Viewing Angle | 17 ° |
| Wavelength | 940 nm |
| Peak Wavelength | 940 nm |
| Dominant Wavelength/CCT (K) | 940 nm |
| Reverse Voltage | 5 V |
| Test Current | 100 mA |
| Schedule B | 8541402000 |
Stock: 3387
Distributors
pcbx
pcbxUnit Price$0.14074
Ext.Price$0.14074
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14074 | $0.14074 |
| 10 | $0.12546 | $1.25460 |
| 50 | $0.11184 | $5.59200 |
| 100 | $0.09897 | $9.89700 |
| 500 | $0.08758 | $43.79000 |
| 1000 | $0.07750 | $77.50000 |
| 3000 | $0.07101 | $213.03000 |
| 5000 | $0.06507 | $325.35000 |
