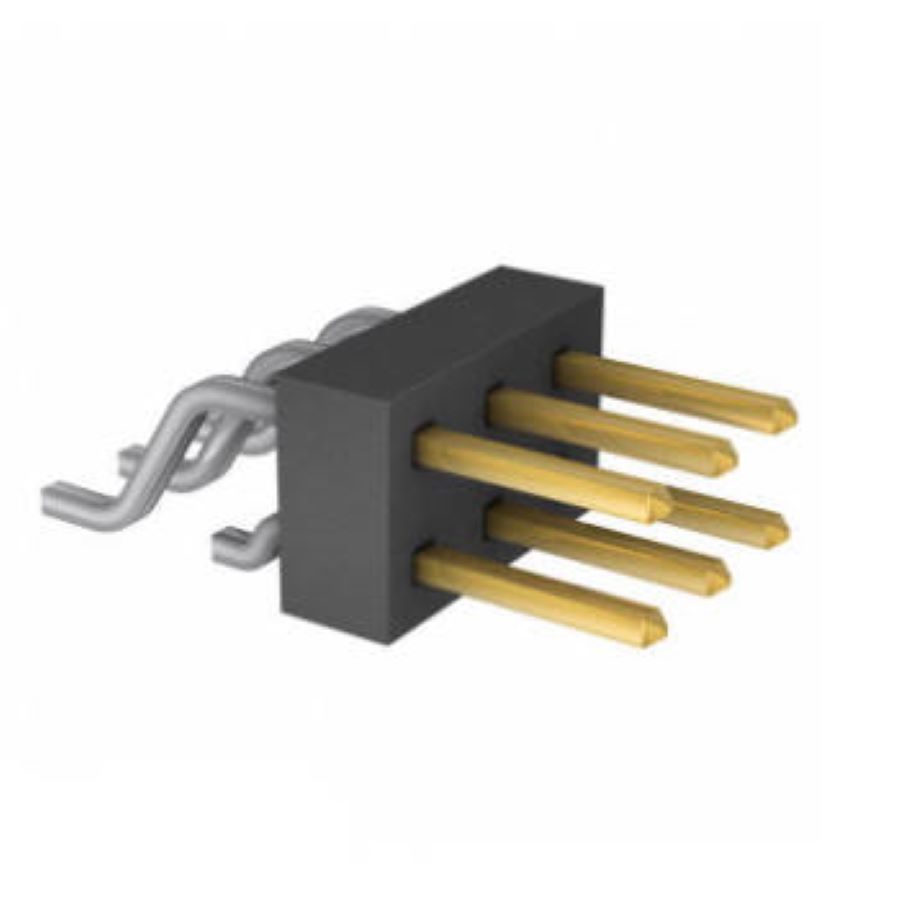

TSM-103-01-L-DH
Manufacturer:
Samtec
Mfr.Part #:
TSM-103-01-L-DH
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 15.09 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Current Rating | 7 A |
| Max Current Rating | 7 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 475 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
Stock: 822
Distributors
pcbx
pcbxUnit Price$0.65744
Ext.Price$0.65744
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.65744 | $0.65744 |
| 10 | $0.61679 | $6.16790 |
| 25 | $0.57866 | $14.46650 |
| 50 | $0.54288 | $27.14400 |
| 100 | $0.46337 | $46.33700 |
| 300 | $0.41798 | $125.39400 |
| 500 | $0.37703 | $188.51500 |
| 1000 | $0.30692 | $306.92000 |
| 3000 | $0.26170 | $785.10000 |
| 5000 | $0.22314 | $1115.70000 |
| 10000 | $0.16158 | $1615.80000 |
