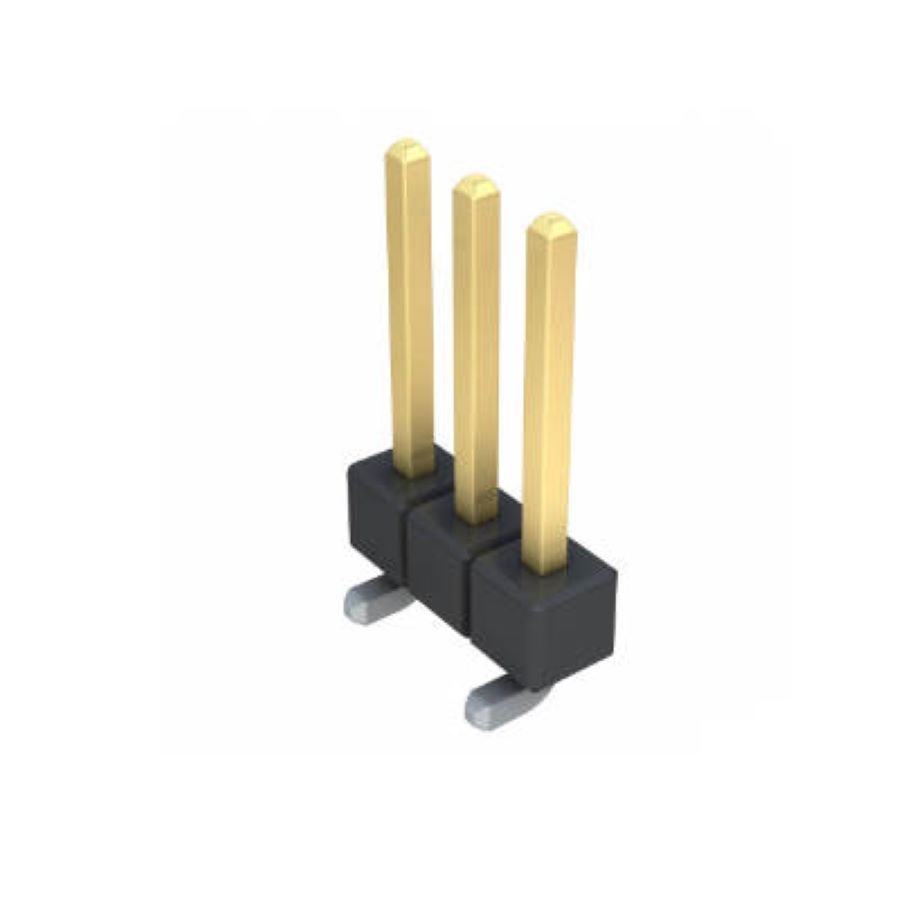

TSM-103-01-L-SV-P-TR
Manufacturer:
Samtec
Mfr.Part #:
TSM-103-01-L-SV-P-TR
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| Connector Type | Male Pin |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 475 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
Stock: 38612
Distributors
pcbx
pcbxUnit Price$0.46936
Ext.Price$0.46936
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46936 | $0.46936 |
| 10 | $0.43848 | $4.38480 |
| 25 | $0.40963 | $10.24075 |
| 50 | $0.38268 | $19.13400 |
| 100 | $0.35750 | $35.75000 |
| 300 | $0.33398 | $100.19400 |
| 500 | $0.31201 | $156.00500 |
| 1000 | $0.29148 | $291.48000 |
| 3000 | $0.27230 | $816.90000 |
| 5000 | $0.25439 | $1271.95000 |
| 10000 | $0.23767 | $2376.70000 |
