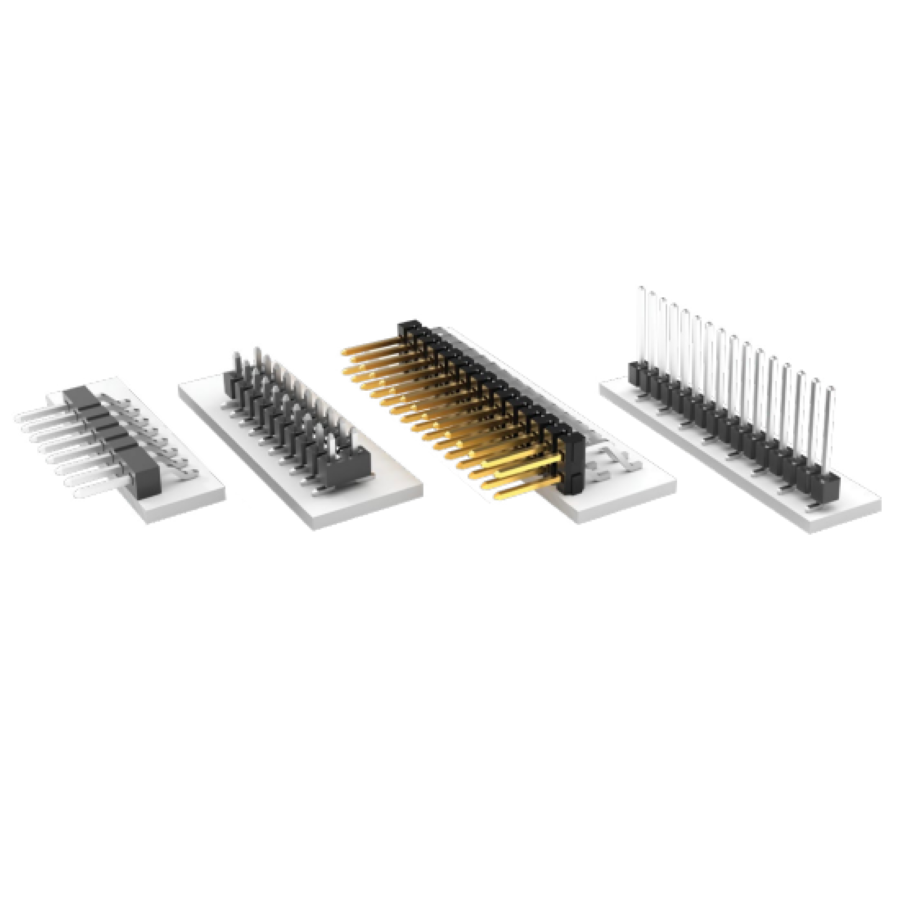

TSM-105-01-F-DV
Manufacturer:
Samtec
Mfr.Part #:
TSM-105-01-F-DV
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 10.16 mm |
| Packaging | Tube |
| Voltage Rating | 475 V |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 5.4 A |
| Max Current Rating | 7 A |
| Orientation | Vertical |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 475 V |
| Housing Color | Black |
| Mating Post Length | 5.84 mm |
Stock: 4374
Distributors
pcbx
pcbxUnit Price$0.90713
Ext.Price$0.90713
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.90713 | $0.90713 |
| 10 | $0.83482 | $8.34820 |
| 25 | $0.76827 | $19.20675 |
| 50 | $0.70703 | $35.35150 |
| 100 | $0.56938 | $56.93800 |
| 300 | $0.52376 | $157.12800 |
| 500 | $0.48179 | $240.89500 |
| 1000 | $0.35039 | $350.39000 |
| 3000 | $0.27302 | $819.06000 |
| 5000 | $0.21274 | $1063.70000 |
| 10000 | $0.12514 | $1251.40000 |
