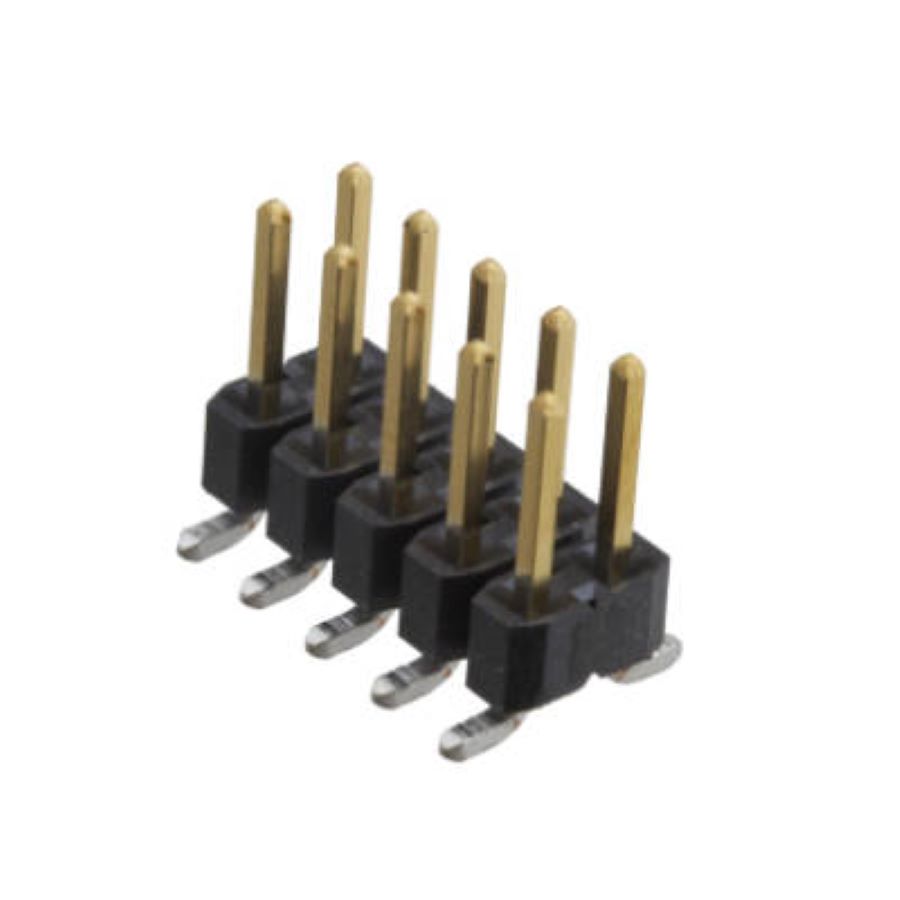

TSM-105-01-L-DV-P
Manufacturer:
Samtec
Mfr.Part #:
TSM-105-01-L-DV-P
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7 A |
| Orientation | Vertical |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 475 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
Stock: 191
Distributors
pcbx
pcbxUnit Price$0.97034
Ext.Price$0.97034
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.97034 | $0.97034 |
| 10 | $0.85628 | $8.56280 |
| 25 | $0.75562 | $18.89050 |
| 50 | $0.66680 | $33.34000 |
| 100 | $0.58842 | $58.84200 |
| 300 | $0.51925 | $155.77500 |
| 500 | $0.45821 | $229.10500 |
| 1000 | $0.40435 | $404.35000 |
| 3000 | $0.35682 | $1070.46000 |
| 5000 | $0.31488 | $1574.40000 |
| 10000 | $0.27785 | $2778.50000 |
