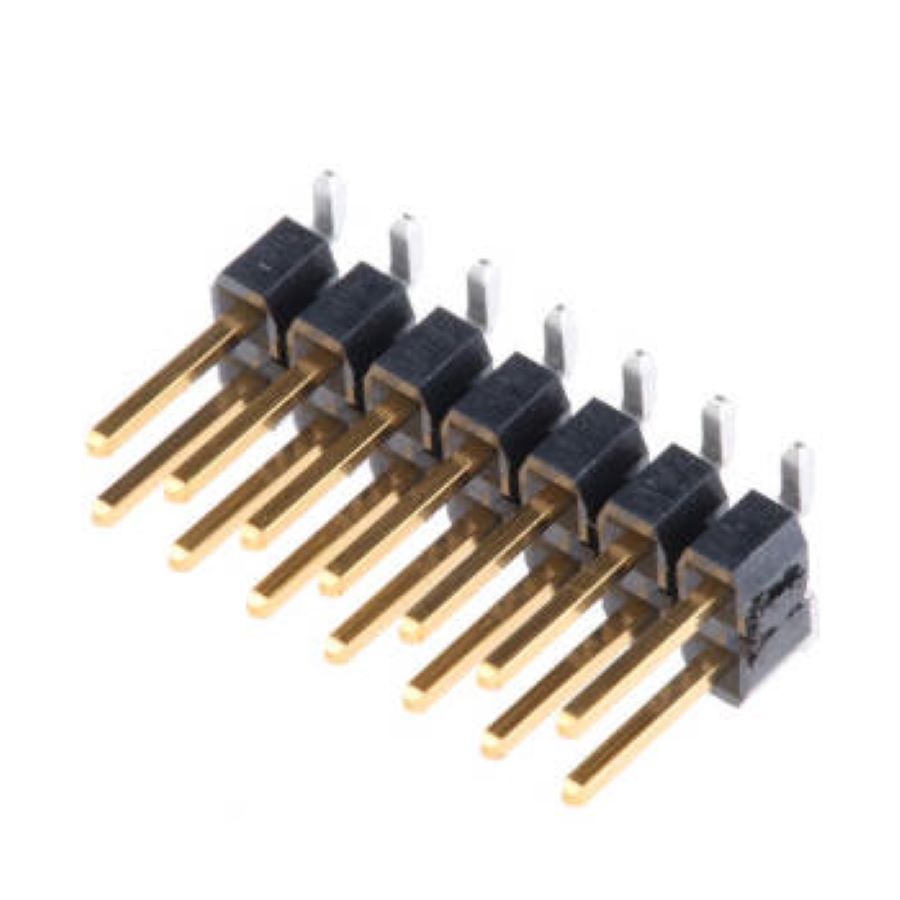

TSM-107-01-L-DV
Manufacturer:
Samtec
Mfr.Part #:
TSM-107-01-L-DV
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 17.78 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 475 V |
| Depth | 7.36 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 7 A |
| Max Current Rating | 7 A |
| Orientation | Vertical |
| Color | Black |
| Gender | Male |
| Number of Contacts | 14 |
| Connector Type | Male Pin |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 475 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
Stock: 902
Distributors
pcbx
pcbxUnit Price$1.28923
Ext.Price$1.28923
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.28923 | $1.28923 |
| 10 | $1.20457 | $12.04570 |
| 25 | $1.12547 | $28.13675 |
| 50 | $1.05156 | $52.57800 |
| 100 | $0.83213 | $83.21300 |
| 300 | $0.65849 | $197.54700 |
| 500 | $0.52108 | $260.54000 |
| 1000 | $0.41234 | $412.34000 |
| 3000 | $0.32630 | $978.90000 |
| 5000 | $0.25821 | $1291.05000 |
| 10000 | $0.20433 | $2043.30000 |
