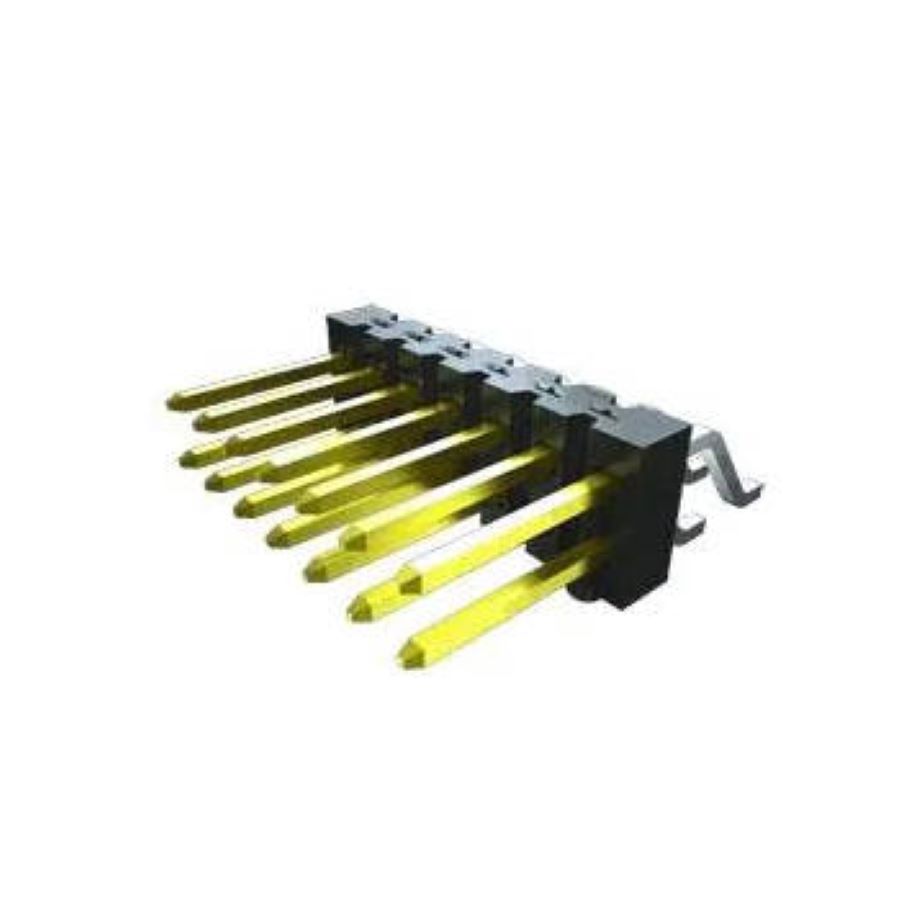

TSM-110-01-L-DV-P
Manufacturer:
Samtec
Mfr.Part #:
TSM-110-01-L-DV-P
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 20 |
| Packaging | Tube |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Manufacturer Package Identifier | TSM-110-01-L-DV-P |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 20 |
| Connector Type | Male Pin |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 475 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
Stock: 14
Distributors
pcbx
pcbxUnit Price$1.78338
Ext.Price$1.78338
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.78338 | $1.78338 |
| 10 | $1.56666 | $15.66660 |
| 25 | $1.37628 | $34.40700 |
| 50 | $1.20903 | $60.45150 |
| 100 | $1.06211 | $106.21100 |
| 300 | $0.93304 | $279.91200 |
| 500 | $0.81966 | $409.83000 |
| 1000 | $0.72005 | $720.05000 |
| 3000 | $0.63255 | $1897.65000 |
| 5000 | $0.55568 | $2778.40000 |
| 10000 | $0.48817 | $4881.70000 |
