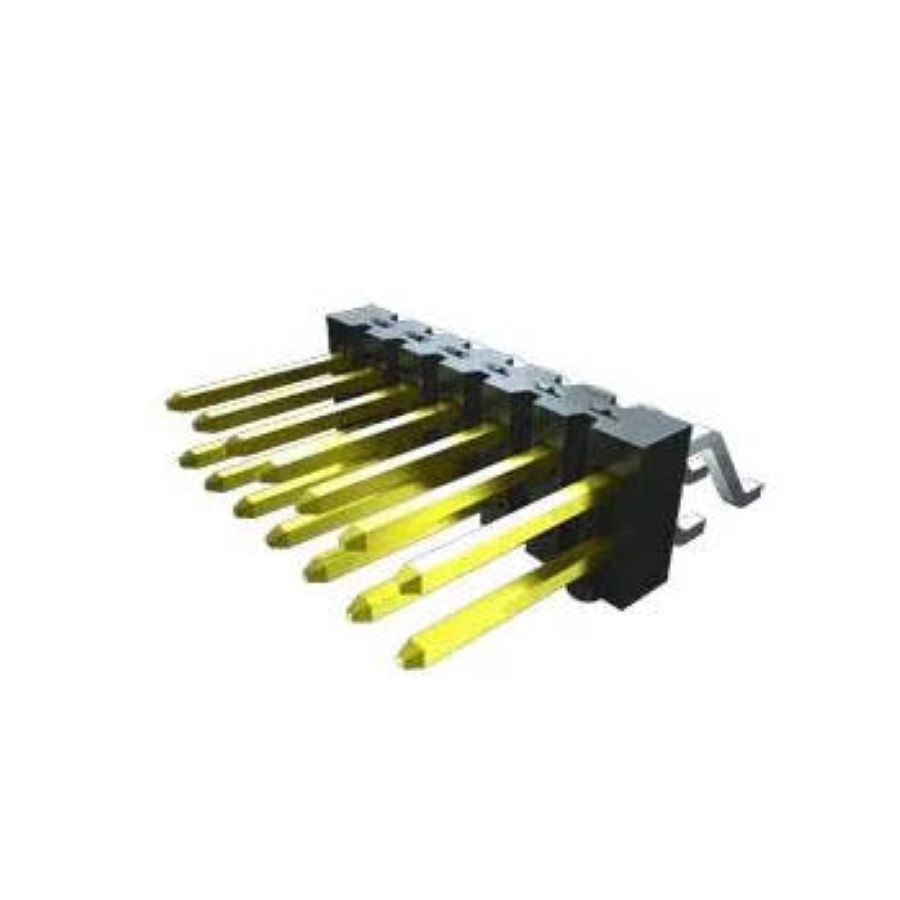

TSM-110-01-L-DV-TR
Manufacturer:
Samtec
Mfr.Part #:
TSM-110-01-L-DV-TR
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 20 |
| Connector Type | Male Pin |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 475 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
Stock: 158
Distributors
pcbx
pcbxUnit Price$1.63377
Ext.Price$1.63377
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.63377 | $1.63377 |
| 10 | $1.59076 | $15.90760 |
| 25 | $1.54888 | $38.72200 |
| 50 | $1.50810 | $75.40500 |
| 100 | $1.33283 | $133.28300 |
| 300 | $1.08789 | $326.36700 |
| 500 | $0.88796 | $443.98000 |
| 1000 | $0.72478 | $724.78000 |
| 3000 | $0.59158 | $1774.74000 |
| 5000 | $0.48286 | $2414.30000 |
| 10000 | $0.39413 | $3941.30000 |
