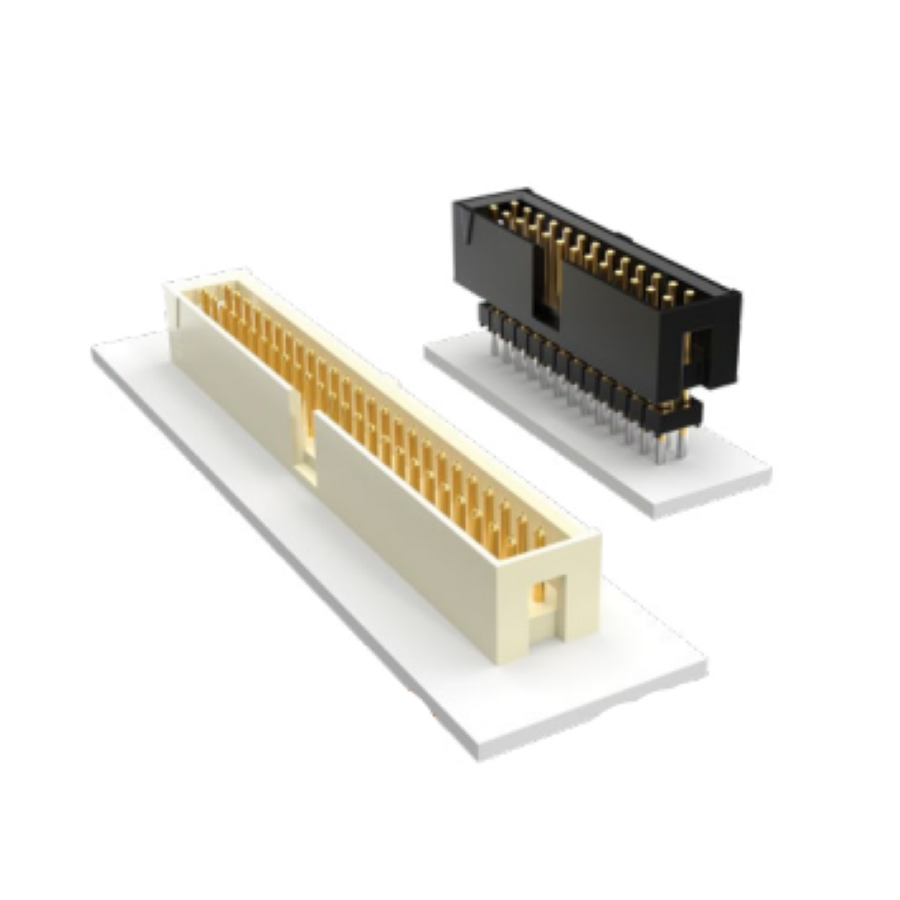

TSS-108-01-T-D
Manufacturer:
Samtec
Mfr.Part #:
TSS-108-01-T-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 24.13 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 9.27 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Pitch | 2.54 mm |
| Orientation | Straight |
| Gender | Pin (Male) |
| Number of Contacts | 16 |
| Connector Type | Header |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Housing Color | Black |
| Mating Post Length | 6.35 mm |
| Termination Post Length | 2.92 mm |
Stock: 106
Distributors
pcbx
pcbxUnit Price$1.20801
Ext.Price$1.20801
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.20801 | $1.20801 |
| 10 | $1.13015 | $11.30150 |
| 25 | $1.05731 | $26.43275 |
| 50 | $0.98916 | $49.45800 |
| 100 | $0.83869 | $83.86900 |
| 300 | $0.79027 | $237.08100 |
| 500 | $0.74464 | $372.32000 |
| 1000 | $0.58477 | $584.77000 |
| 3000 | $0.49897 | $1496.91000 |
| 5000 | $0.42576 | $2128.80000 |
| 10000 | $0.32146 | $3214.60000 |
