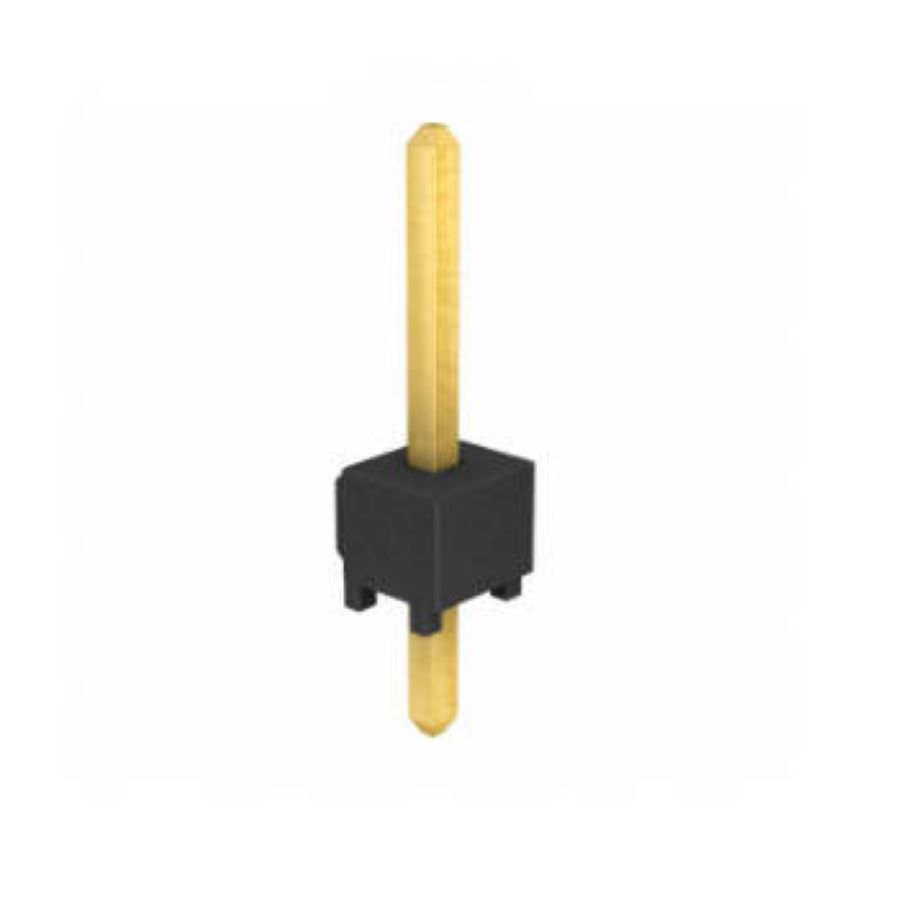

TSW-101-07-G-S
Manufacturer:
Samtec
Mfr.Part #:
TSW-101-07-G-S
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:1
| Parameter | Value |
|---|---|
| Length | 2.54 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 1 |
| Connector Type | Male Pin |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
Stock: 176
Distributors
pcbx
pcbxUnit Price$0.07910
Ext.Price$0.07910
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07910 | $0.07910 |
| 10 | $0.07828 | $0.78280 |
| 50 | $0.07747 | $3.87350 |
| 100 | $0.07671 | $7.67100 |
| 500 | $0.07595 | $37.97500 |
