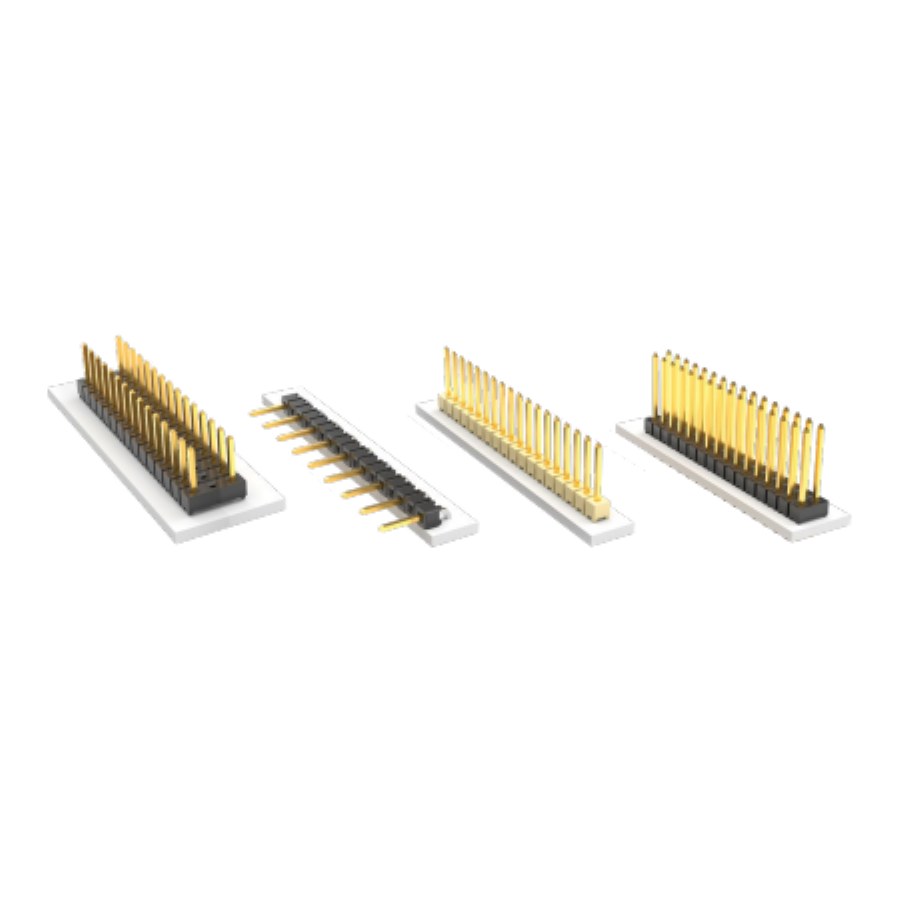

TSW-101-07-L-D
Manufacturer:
Samtec
Mfr.Part #:
TSW-101-07-L-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 2.54 mm |
| Width | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.54 mm |
Stock: 4540
Distributors
pcbx
pcbxUnit Price$0.15645
Ext.Price$0.15645
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15645 | $0.15645 |
| 10 | $0.13635 | $1.36350 |
| 50 | $0.11883 | $5.94150 |
| 100 | $0.09404 | $9.40400 |
| 500 | $0.08139 | $40.69500 |
| 1000 | $0.06258 | $62.58000 |
| 3000 | $0.04891 | $146.73000 |
| 5000 | $0.03822 | $191.10000 |
