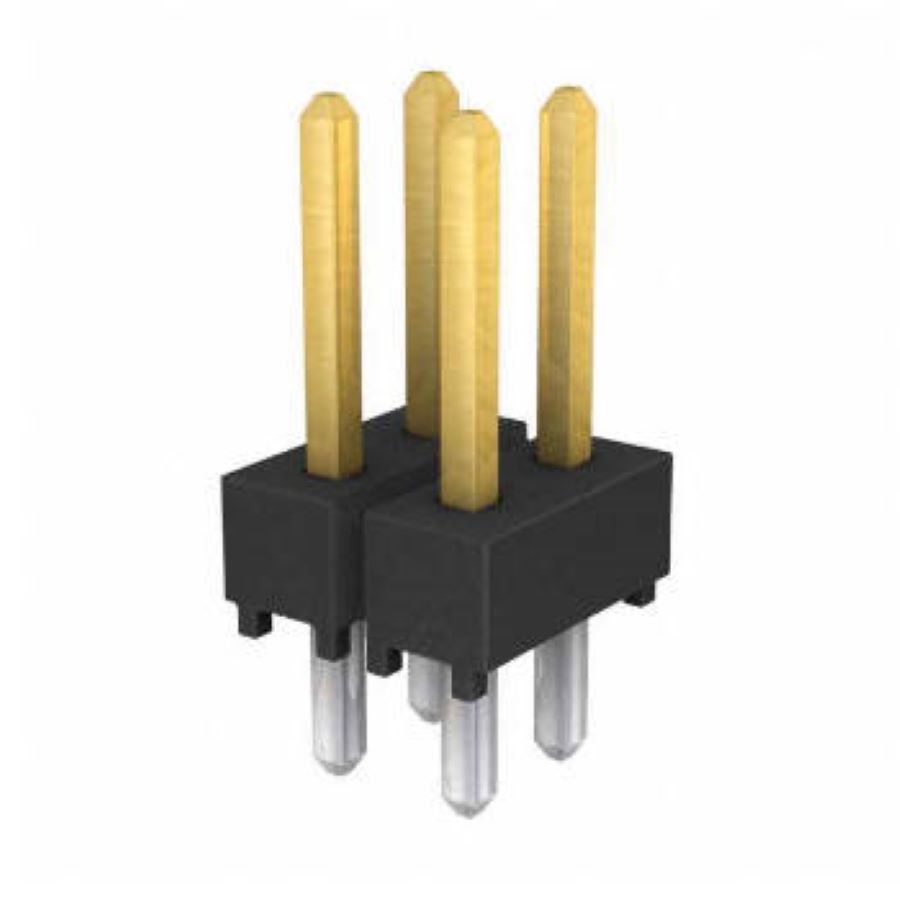

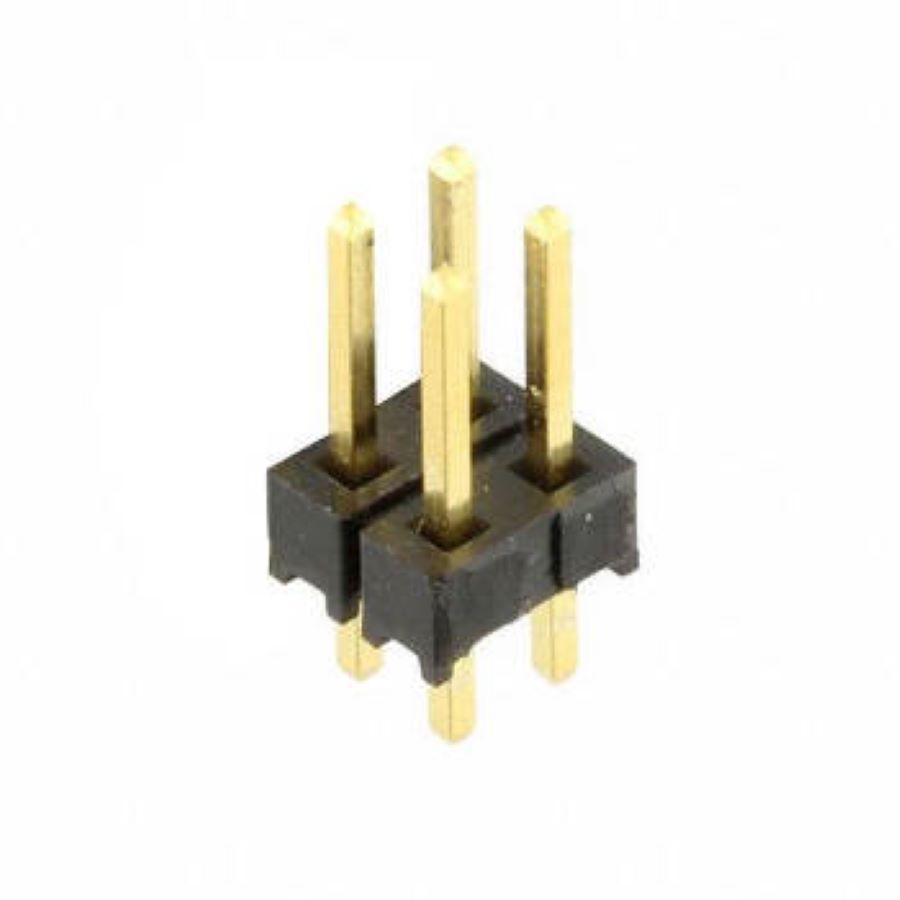

TSW-102-07-F-D
Manufacturer:
Samtec
Mfr.Part #:
TSW-102-07-F-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bag |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.54 mm |
Stock: 2258
Distributors
pcbx
pcbxUnit Price$0.13764
Ext.Price$0.13764
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13764 | $0.13764 |
| 10 | $0.12708 | $1.27080 |
| 50 | $0.11733 | $5.86650 |
| 100 | $0.10833 | $10.83300 |
| 500 | $0.10003 | $50.01500 |
| 1000 | $0.08515 | $85.15000 |
| 3000 | $0.07265 | $217.95000 |
| 5000 | $0.06198 | $309.90000 |
| 10000 | $0.05446 | $544.60000 |
