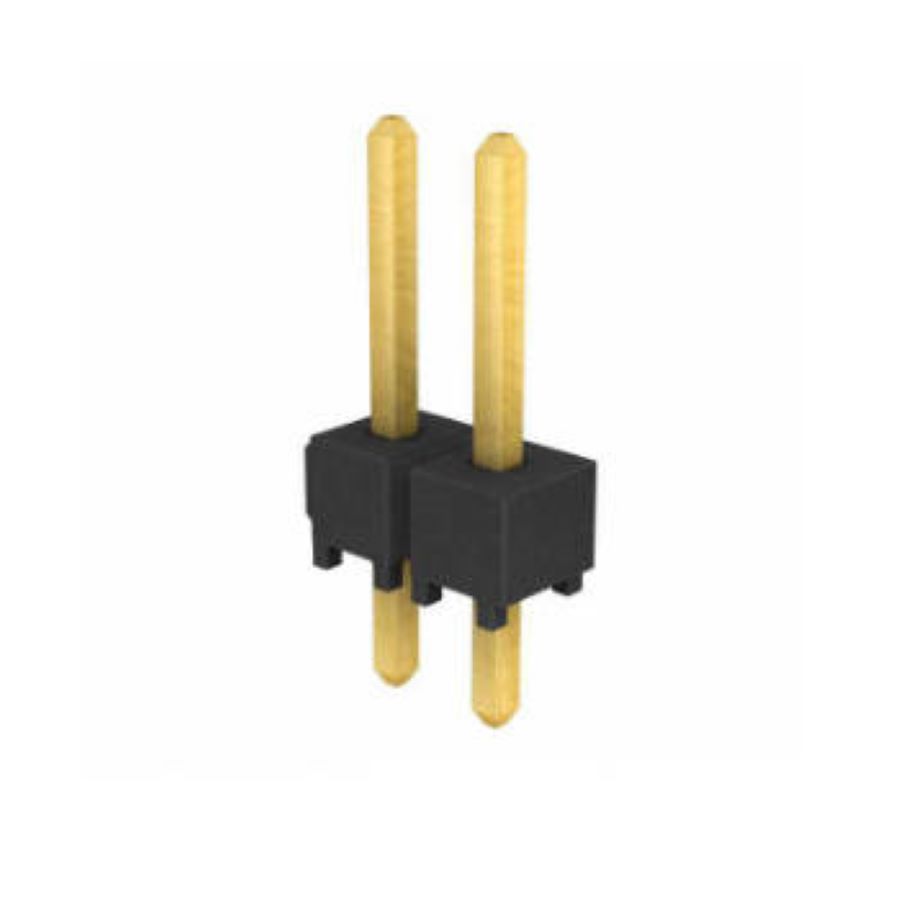

TSW-102-07-G-S
Manufacturer:
Samtec
Mfr.Part #:
TSW-102-07-G-S
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 8.71 mm |
| Packaging | Bulk |
| Voltage Rating | 550 V |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 6.3 A |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.54 mm |
Stock: 1146
Distributors
pcbx
pcbxUnit Price$0.19402
Ext.Price$0.19402
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19402 | $0.19402 |
| 10 | $0.17279 | $1.72790 |
| 50 | $0.15389 | $7.69450 |
| 100 | $0.13384 | $13.38400 |
| 500 | $0.11640 | $58.20000 |
| 1000 | $0.11140 | $111.40000 |
| 3000 | $0.10661 | $319.83000 |
| 5000 | $0.10202 | $510.10000 |
