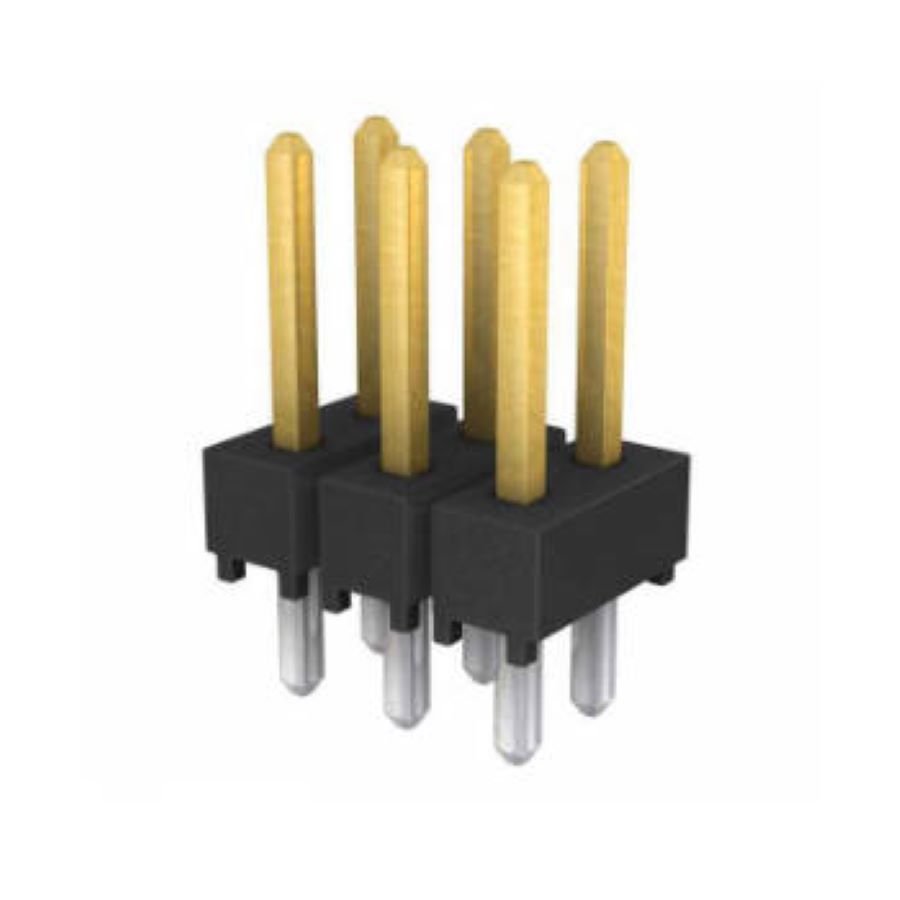

TSW-103-07-F-D
Manufacturer:
Samtec
Mfr.Part #:
TSW-103-07-F-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.54 mm |
Stock: 1848
Distributors
pcbx
pcbxUnit Price$0.20006
Ext.Price$0.20006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20006 | $0.20006 |
| 10 | $0.18415 | $1.84150 |
| 50 | $0.16951 | $8.47550 |
| 100 | $0.15603 | $15.60300 |
| 500 | $0.14363 | $71.81500 |
| 1000 | $0.12482 | $124.82000 |
| 3000 | $0.10433 | $312.99000 |
| 5000 | $0.08720 | $436.00000 |
| 10000 | $0.08139 | $813.90000 |
