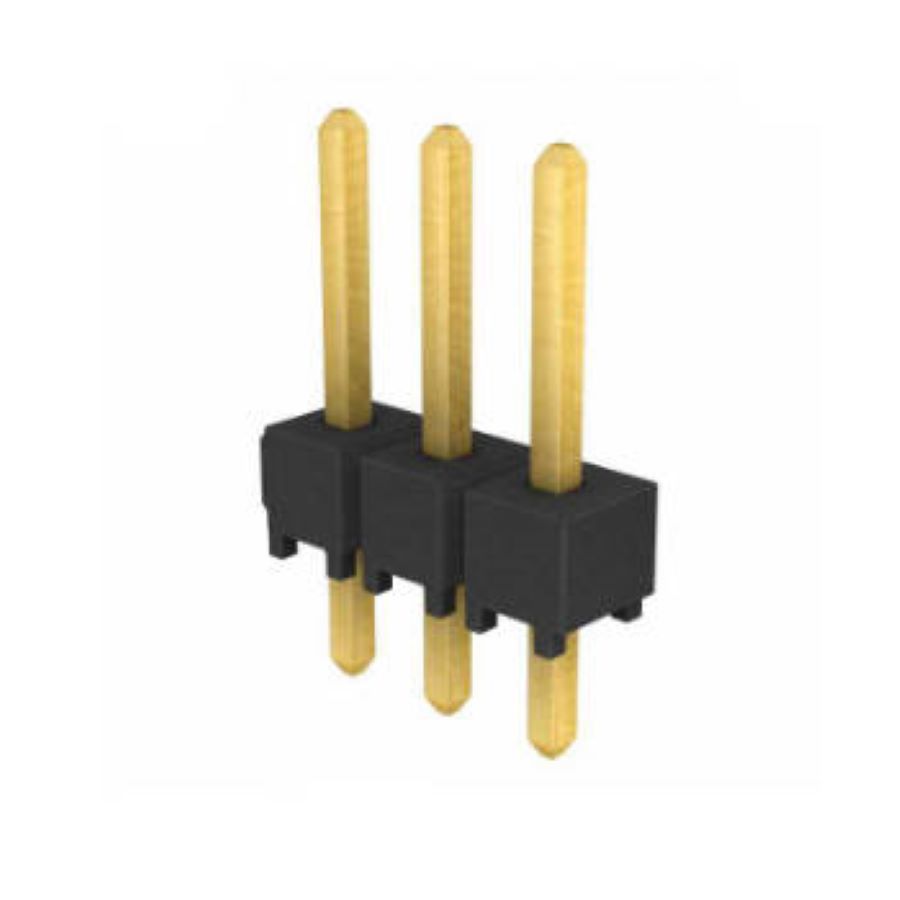

TSW-103-07-G-S
Manufacturer:
Samtec
Mfr.Part #:
TSW-103-07-G-S
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Vertical |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.54 mm |
Stock: 70001
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.14790 | $1.47900 |
| 50 | $0.13272 | $6.63600 |
| 100 | $0.11910 | $11.91000 |
| 500 | $0.10687 | $53.43500 |
| 1000 | $0.09147 | $91.47000 |
