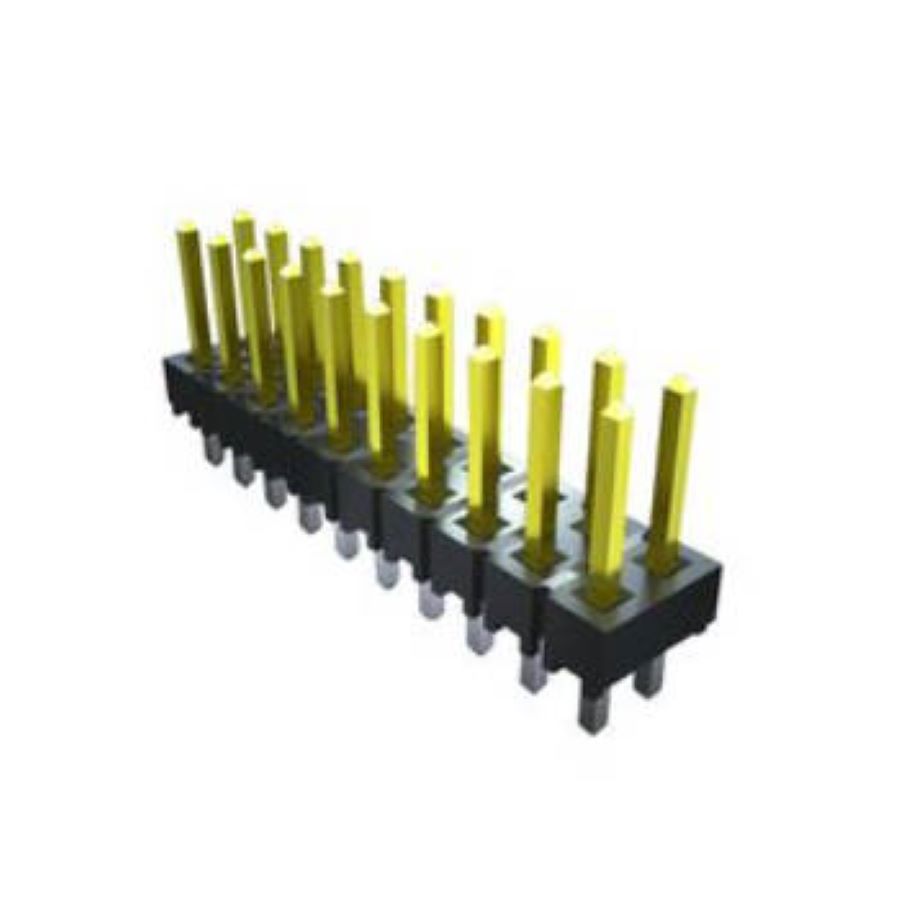

TSW-105-07-G-D
Manufacturer:
Samtec
Mfr.Part #:
TSW-105-07-G-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Width | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.54 mm |
Stock: 15972
Distributors
pcbx
pcbxUnit Price$0.47534
Ext.Price$0.47534
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47534 | $0.47534 |
| 10 | $0.45052 | $4.50520 |
| 25 | $0.42699 | $10.67475 |
| 50 | $0.40469 | $20.23450 |
| 100 | $0.38356 | $38.35600 |
| 300 | $0.36353 | $109.05900 |
| 500 | $0.34454 | $172.27000 |
| 1000 | $0.29410 | $294.10000 |
| 3000 | $0.25764 | $772.92000 |
| 5000 | $0.22570 | $1128.50000 |
| 10000 | $0.20262 | $2026.20000 |
