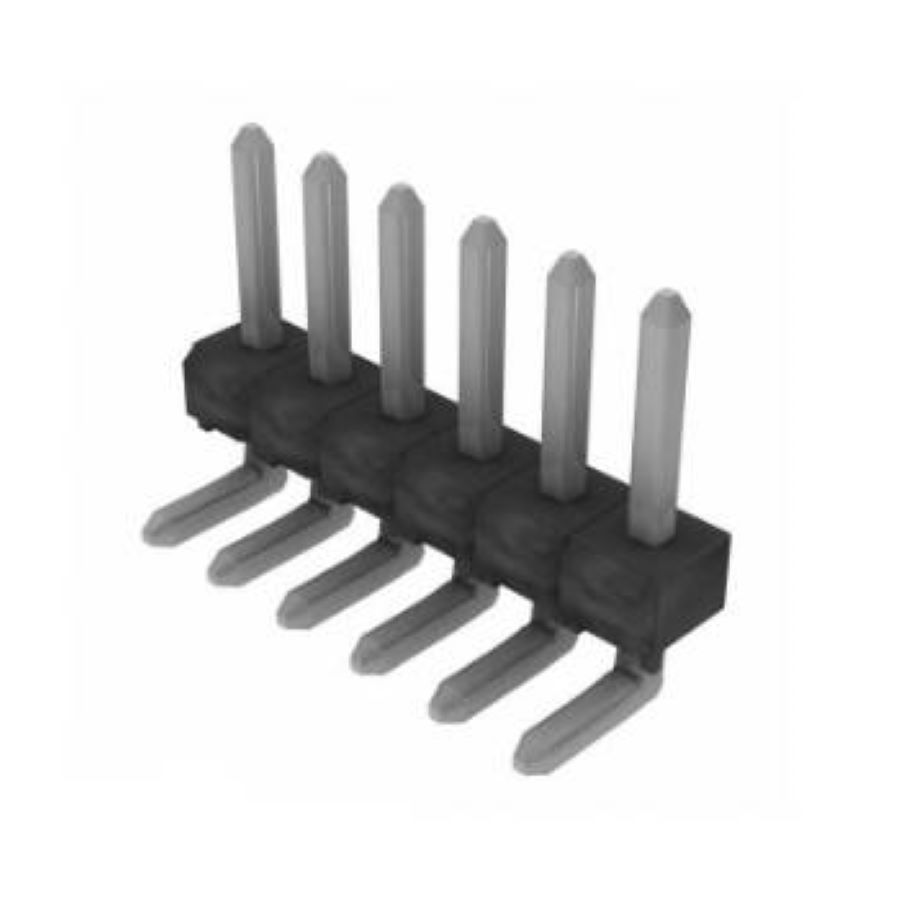

TSW-106-08-T-S-RA
Manufacturer:
Samtec
Mfr.Part #:
TSW-106-08-T-S-RA
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 9.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 450 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.29 mm |
Stock: 1977
Distributors
pcbx
pcbxUnit Price$0.34454
Ext.Price$0.34454
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.34454 | $0.34454 |
| 10 | $0.30169 | $3.01690 |
| 50 | $0.26417 | $13.20850 |
| 100 | $0.21373 | $21.37300 |
| 500 | $0.18124 | $90.62000 |
| 1000 | $0.13508 | $135.08000 |
| 3000 | $0.10906 | $327.18000 |
| 5000 | $0.08806 | $440.30000 |
