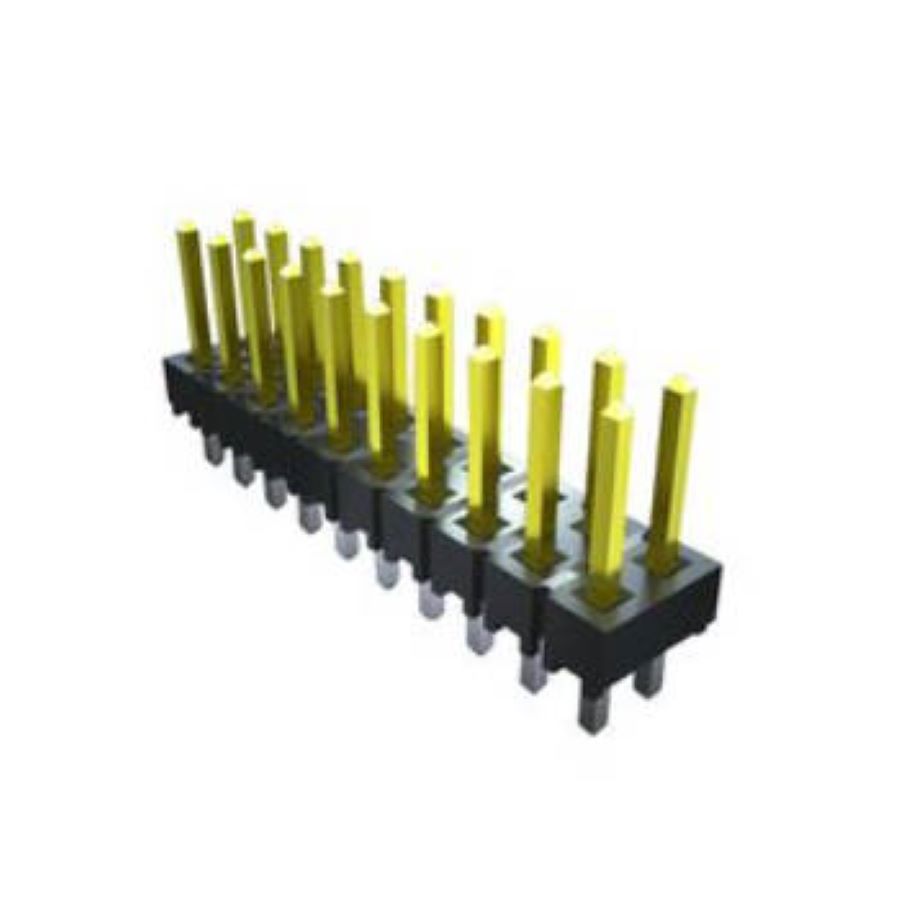

TSW-106-14-G-D
Manufacturer:
Samtec
Mfr.Part #:
TSW-106-14-G-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:12 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Width | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 12 |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 8.128 mm |
| Mating Post Length | 8.13 mm |
| Termination Post Length | 2.79 mm |
Stock: 861
Distributors
pcbx
pcbxUnit Price$0.85750
Ext.Price$0.85750
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.85750 | $0.85750 |
| 10 | $0.80408 | $8.04080 |
| 25 | $0.75399 | $18.84975 |
| 50 | $0.70703 | $35.35150 |
| 100 | $0.58819 | $58.81900 |
| 300 | $0.53585 | $160.75500 |
| 500 | $0.48817 | $244.08500 |
| 1000 | $0.41720 | $417.20000 |
| 3000 | $0.35634 | $1069.02000 |
| 5000 | $0.30436 | $1521.80000 |
| 10000 | $0.25477 | $2547.70000 |
