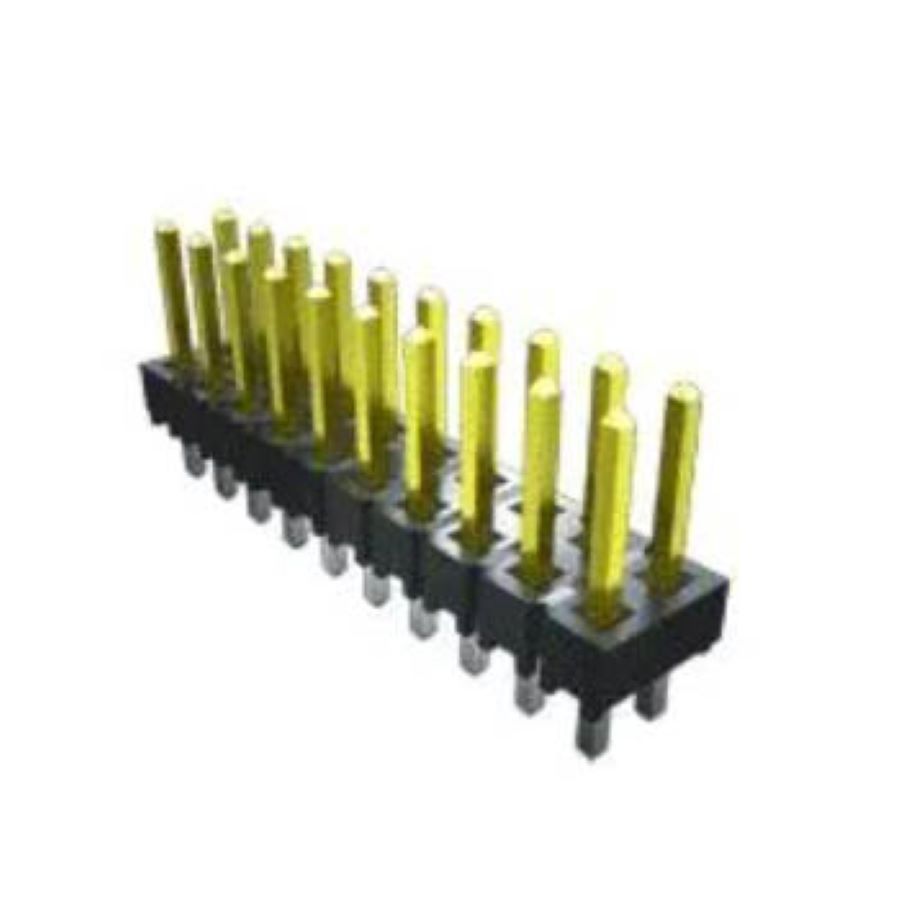

TSW-107-05-T-D
Manufacturer:
Samtec
Mfr.Part #:
TSW-107-05-T-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 17.78 mm |
| Width | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 14 |
| Connector Type | Male Pin |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 2.667 mm |
| Mating Post Length | 2.67 mm |
| Termination Post Length | 3.3 mm |
Stock: 79
Distributors
pcbx
pcbxUnit Price$0.58819
Ext.Price$0.58819
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58819 | $0.58819 |
| 10 | $0.55276 | $5.52760 |
| 25 | $0.51946 | $12.98650 |
| 50 | $0.48817 | $24.40850 |
| 100 | $0.40010 | $40.01000 |
| 300 | $0.36430 | $109.29000 |
| 500 | $0.33171 | $165.85500 |
| 1000 | $0.27529 | $275.29000 |
| 3000 | $0.23114 | $693.42000 |
| 5000 | $0.19407 | $970.35000 |
| 10000 | $0.15645 | $1564.50000 |
