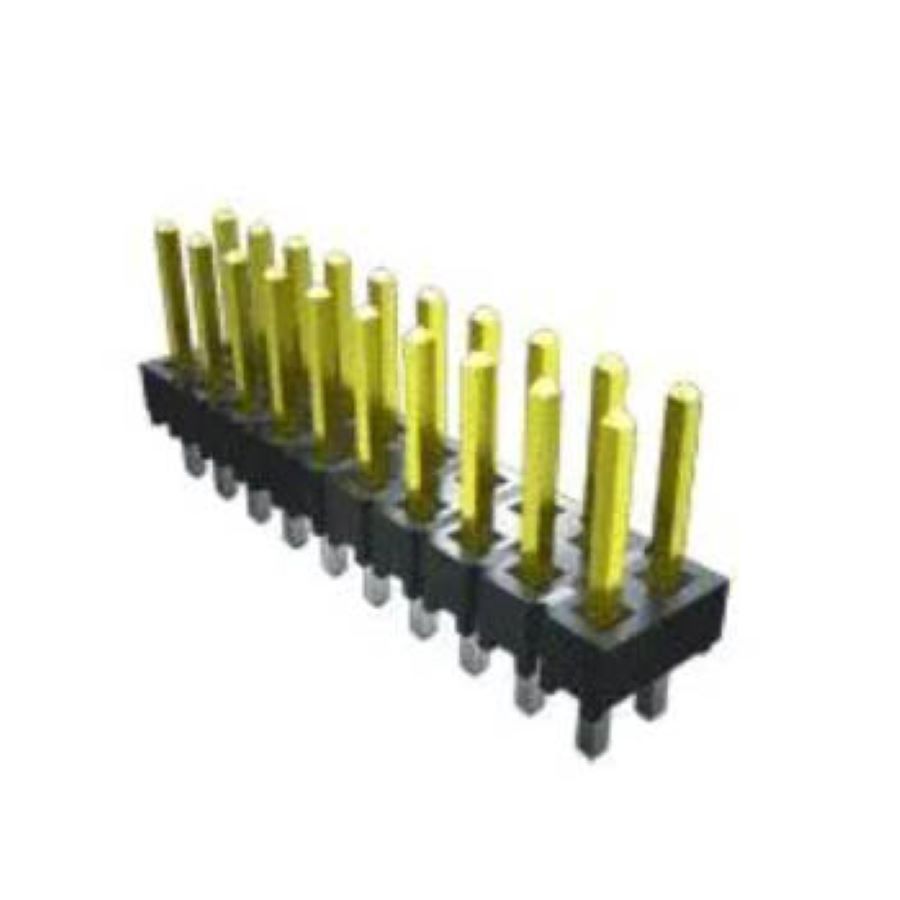

TSW-110-05-T-D
Manufacturer:
Samtec
Mfr.Part #:
TSW-110-05-T-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Width | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 20 |
| Connector Type | Male Pin |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 2.667 mm |
| Mating Post Length | 2.67 mm |
| Termination Post Length | 3.3 mm |
Stock: 210
Distributors
pcbx
pcbxUnit Price$0.83869
Ext.Price$0.83869
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83869 | $0.83869 |
| 10 | $0.78779 | $7.87790 |
| 25 | $0.73998 | $18.49950 |
| 50 | $0.69506 | $34.75300 |
| 100 | $0.57366 | $57.36600 |
| 300 | $0.52313 | $156.93900 |
| 500 | $0.47705 | $238.52500 |
| 1000 | $0.39413 | $394.13000 |
| 3000 | $0.32888 | $986.64000 |
| 5000 | $0.27443 | $1372.15000 |
| 10000 | $0.22399 | $2239.90000 |
