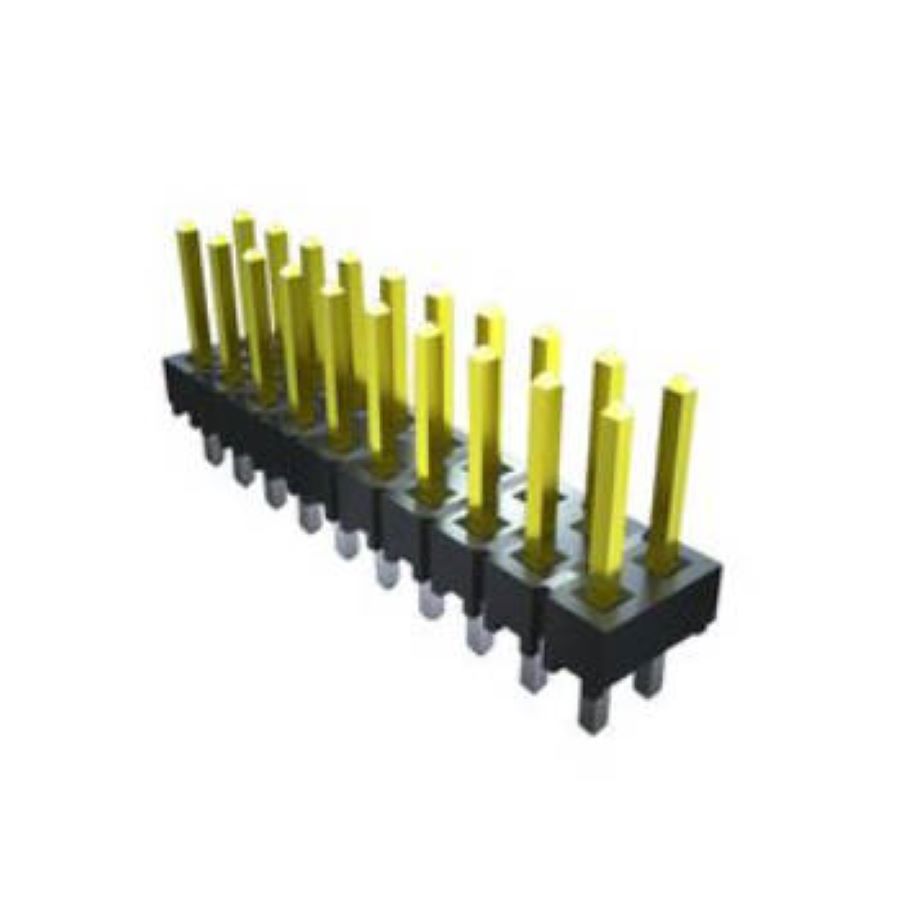

TSW-112-06-T-S
Manufacturer:
Samtec
Mfr.Part #:
TSW-112-06-T-S
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:12 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 30.48 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 12 |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Contact Mating Length | 2.667 mm |
| Mating Post Length | 2.67 mm |
| Termination Post Length | 2.41 mm |
Stock: 100
Distributors
pcbx
pcbxUnit Price$0.50697
Ext.Price$0.50697
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50697 | $0.50697 |
| 10 | $0.47476 | $4.74760 |
| 25 | $0.44460 | $11.11500 |
| 50 | $0.41635 | $20.81750 |
| 100 | $0.34454 | $34.45400 |
| 300 | $0.31413 | $94.23900 |
| 500 | $0.28640 | $143.20000 |
| 1000 | $0.23681 | $236.81000 |
| 3000 | $0.19767 | $593.01000 |
| 5000 | $0.16500 | $825.00000 |
| 10000 | $0.13423 | $1342.30000 |
