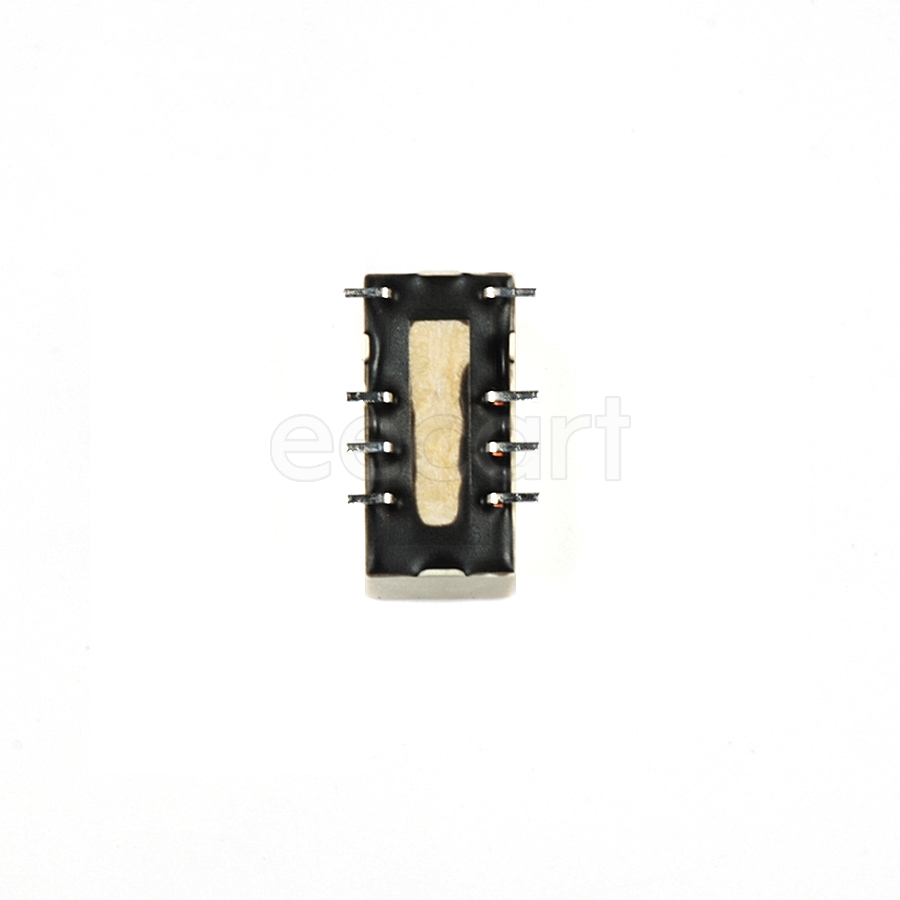

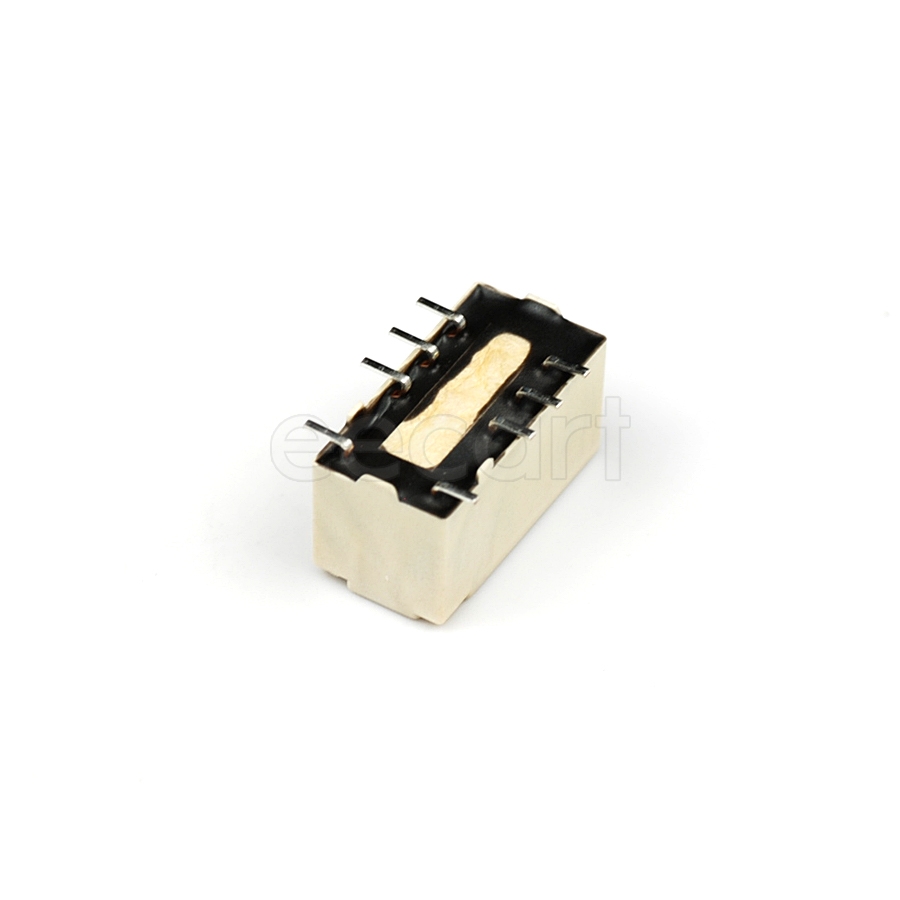

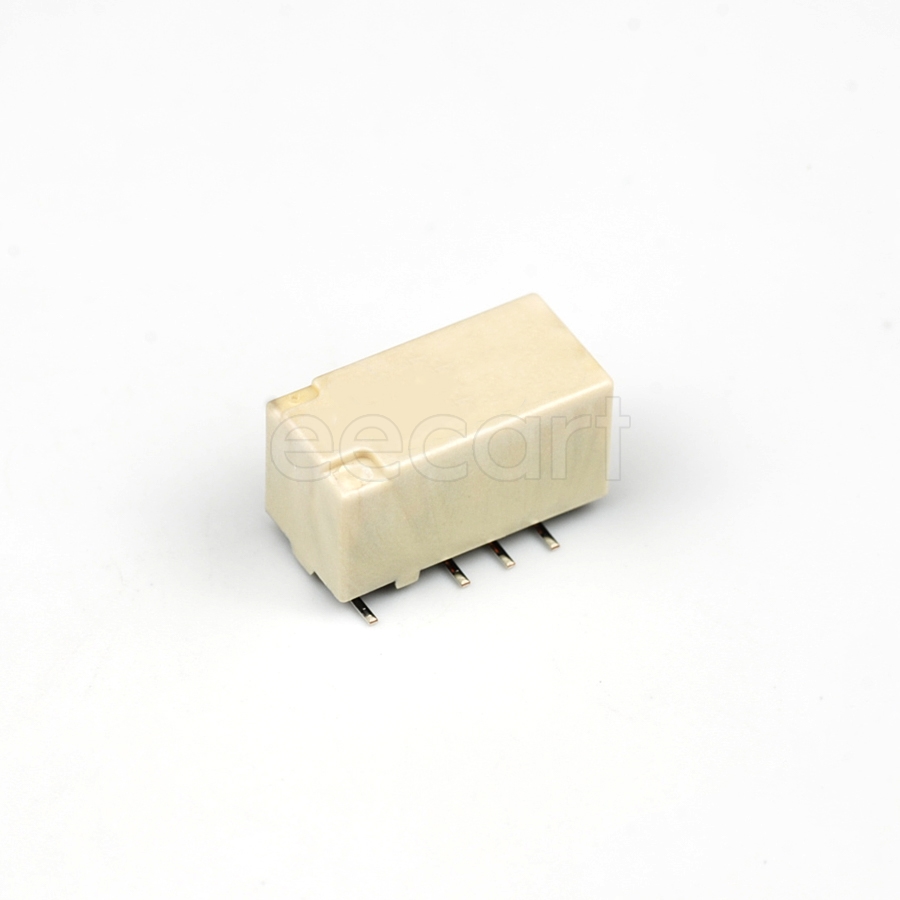

TXD2SA-5V-Z
Manufacturer:
Panasonic
Mfr.Part #:
TXD2SA-5V-Z
Datasheet:
Description:
Signal Relays SMD/SMT 40 mA Non-Latching Coil Voltage (DC):5 V
| Parameter | Value |
|---|---|
| Length | 15 mm |
| Width | 7.4 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 8.2 mm |
| Packaging | Reel |
| Depth | 9.4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 2 g |
| Contact Material(Contact Finish) | Silver |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 220 V |
| Insertion Loss (dB) | 0.8 dB |
| Throw Configuration | DPDT |
| Coil Voltage (DC) | 5 V |
| Coil Current | 40 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 125 Ω |
| Relay Type | General Purpose |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Contact Current Rating | 2 A |
| power consumption | 200 mW |
| Coil Power | 200 mW |
| Contact Form | DPDT |
Stock: 140
Distributors
pcbx
pcbxUnit Price$1.93983
Ext.Price$1.93983
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.93983 | $1.93983 |
| 10 | $1.73380 | $17.33800 |
| 25 | $1.65856 | $41.46400 |
| 50 | $1.60214 | $80.10700 |
| 100 | $1.51408 | $151.40800 |
| 300 | $1.46982 | $440.94600 |
| 500 | $1.42687 | $713.43500 |
| 1000 | $1.34566 | $1345.66000 |
