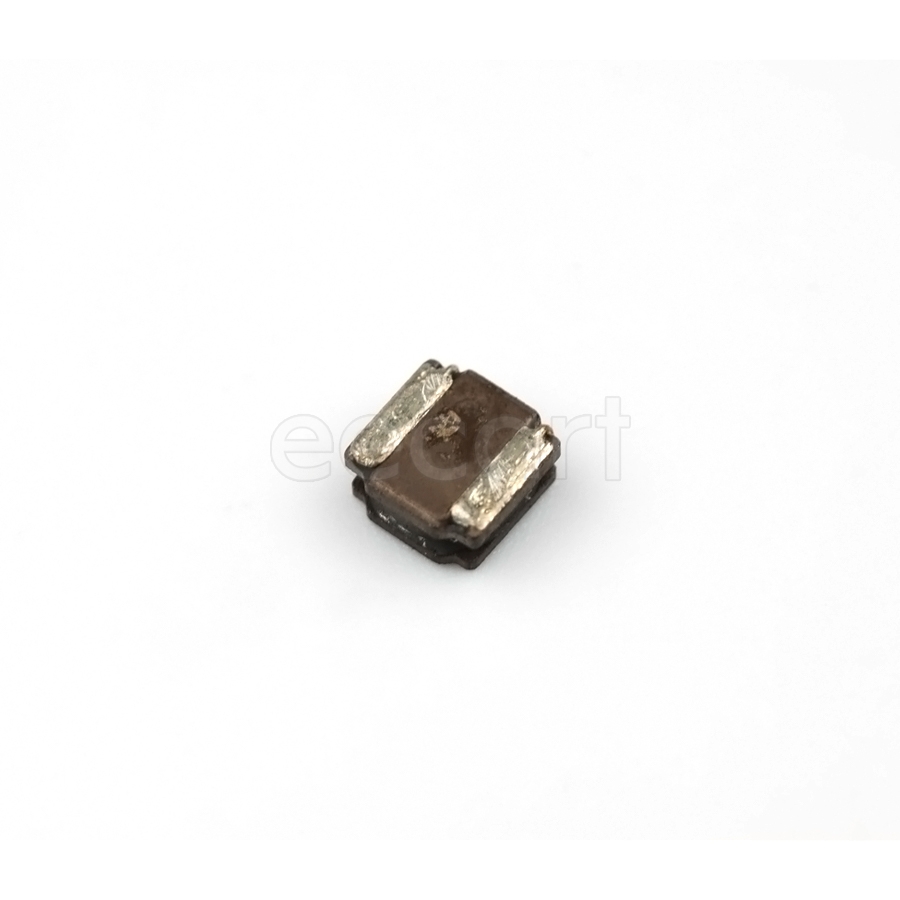

TYS40306R8M-10
Manufacturer:
Laird
Mfr.Part #:
TYS40306R8M-10
Datasheet:
Description:
Fixed Inductors 4.00mmL×4.00mmW×3.00mmH SMD/SMT 6.8 µH 20 % 1.6 A 90 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 3.9878 mm |
| Width | 4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 3 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 24 MHz |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 90 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 3 months ago) |
| Shielding | Shielded |
| Inductance | 6.8 µH |
| Max DC Current | 1.6 A |
| Saturation Current | 2.75 A |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 3 months ago) |
| Core Material | Ferrite |
| Type | Wirewound |
Stock: 928
Distributors
pcbx
pcbxUnit Price$0.29410
Ext.Price$0.29410
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29410 | $0.29410 |
| 10 | $0.25819 | $2.58190 |
| 25 | $0.23596 | $5.89900 |
| 50 | $0.21210 | $10.60500 |
| 100 | $0.19065 | $19.06500 |
| 300 | $0.17068 | $51.20400 |
| 500 | $0.15280 | $76.40000 |
| 1000 | $0.13679 | $136.79000 |
| 3000 | $0.13176 | $395.28000 |
| 5000 | $0.12692 | $634.60000 |
| 10000 | $0.12226 | $1222.60000 |
