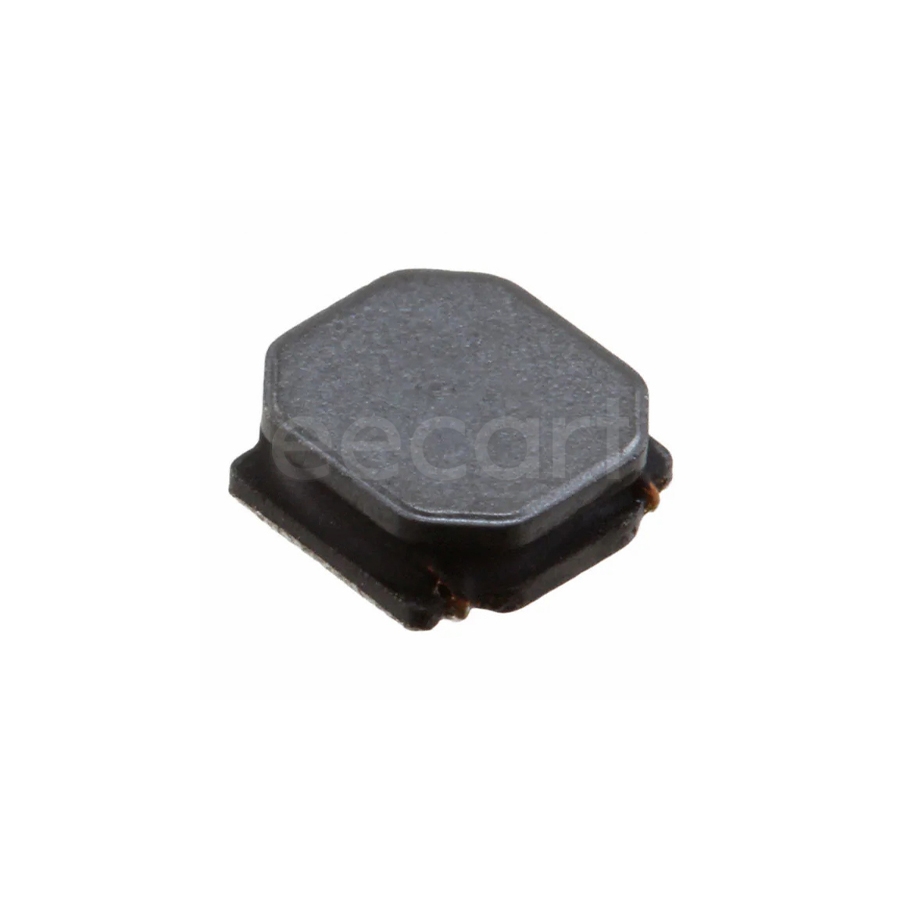

TYS5020100M-10
Manufacturer:
Laird
Mfr.Part #:
TYS5020100M-10
Datasheet:
Description:
Fixed Inductors 2020(5050 Metric) SMD/SMT 10 µH 20 % 1.55 A 110 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.98 mm |
| Length | 5 mm |
| Width | 5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 2020 |
| Case Code (Metric) | 5050 |
| Height | 2 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 24 MHz |
| Current Rating | 1.55 A |
| DC Resistance (DCR) | 110 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 4 months ago) |
| Shielding | Shielded |
| Inductance | 10 µH |
| RMS Current (Irms) | 1.55 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.55 A |
| Saturation Current | 1.7 A |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 months ago) |
Stock: 11943
Distributors
pcbx
pcbxUnit Price$0.25648
Ext.Price$0.25648
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25648 | $0.25648 |
| 10 | $0.20946 | $2.09460 |
| 25 | $0.19641 | $4.91025 |
| 50 | $0.18417 | $9.20850 |
| 100 | $0.17270 | $17.27000 |
| 300 | $0.16273 | $48.81900 |
| 500 | $0.15333 | $76.66500 |
| 1000 | $0.14448 | $144.48000 |
| 3000 | $0.13567 | $407.01000 |
| 5000 | $0.12739 | $636.95000 |
| 10000 | $0.12397 | $1239.70000 |
