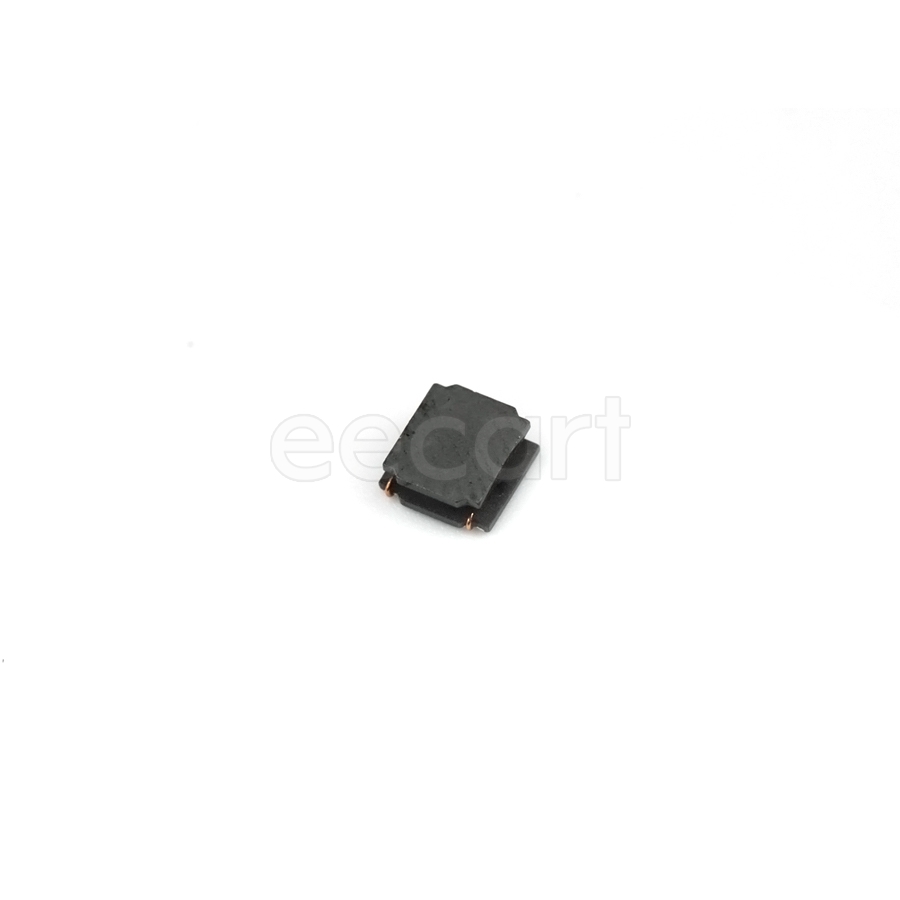

TYS6045680M-10
Manufacturer:
Laird
Mfr.Part #:
TYS6045680M-10
Datasheet:
Description:
Fixed Inductors 6.00mmL×6.00mmW×4.70mmH SMD/SMT 68 µH 20 % 1 A 289 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.7 mm |
| Length | 5.9944 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.5 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Weight | 400.011771 mg |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 6.4 MHz |
| Type | Wirewound |
| Current Rating | 1 A |
| DC Resistance (DCR) | 289 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Shielding | Shielded |
| Inductance | 68 µH |
| Core Material | Ferrite |
| Max DC Current | 1 A |
| Saturation Current | 1.2 A |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
Stock: 774
Distributors
pcbx
pcbxUnit Price$0.25648
Ext.Price$0.25648
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25648 | $0.25648 |
| 10 | $0.21117 | $2.11170 |
| 25 | $0.18467 | $4.61675 |
| 50 | $0.17902 | $8.95100 |
| 100 | $0.17355 | $17.35500 |
| 300 | $0.15982 | $47.94600 |
| 500 | $0.14718 | $73.59000 |
| 1000 | $0.13554 | $135.54000 |
| 3000 | $0.12482 | $374.46000 |
