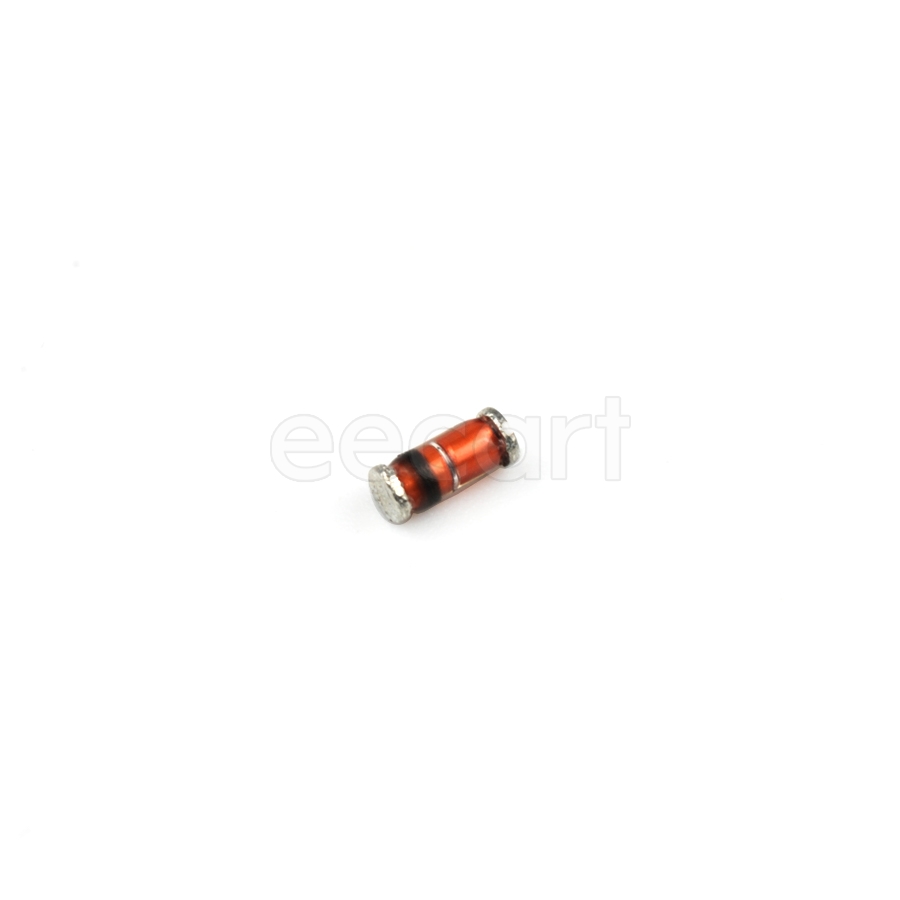

TZMC30-GS08
Manufacturer:
Vishay
Mfr.Part #:
TZMC30-GS08
Datasheet:
Description:
Zener Diodes SOD-80 SMD/SMT Single Zener Voltage:30 V 5 % 500 mW
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Length | 3.7 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 1.6 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 30 V |
| Impedance | 80 Ω |
| Current | 250 mA |
| Working Voltage | 32 V |
| Forward Voltage | 1.5 V |
| Max Power Dissipation | 500 mW |
| Power Dissipation | 500 mW |
| Breakdown Voltage | 30 V |
| Max Reverse Leakage Current | 100 nA |
| Zener Voltage | 30 V |
| Element Configuration | Single |
| Test Current | 5 mA |
| Reverse Current | 100 nA |
| Voltage Tolerance | 5 % |
| Voltage Temperature Coefficient | 0.12 %/K |
Stock: 117
Distributors
pcbx
pcbxUnit Price$0.08139
Ext.Price$0.08139
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08139 | $0.08139 |
| 10 | $0.05754 | $0.57540 |
| 50 | $0.03886 | $1.94300 |
| 100 | $0.02625 | $2.62500 |
| 500 | $0.02491 | $12.45500 |
| 1000 | $0.02364 | $23.64000 |
| 3000 | $0.02243 | $67.29000 |
| 5000 | $0.02129 | $106.45000 |
| 10000 | $0.01505 | $150.50000 |
