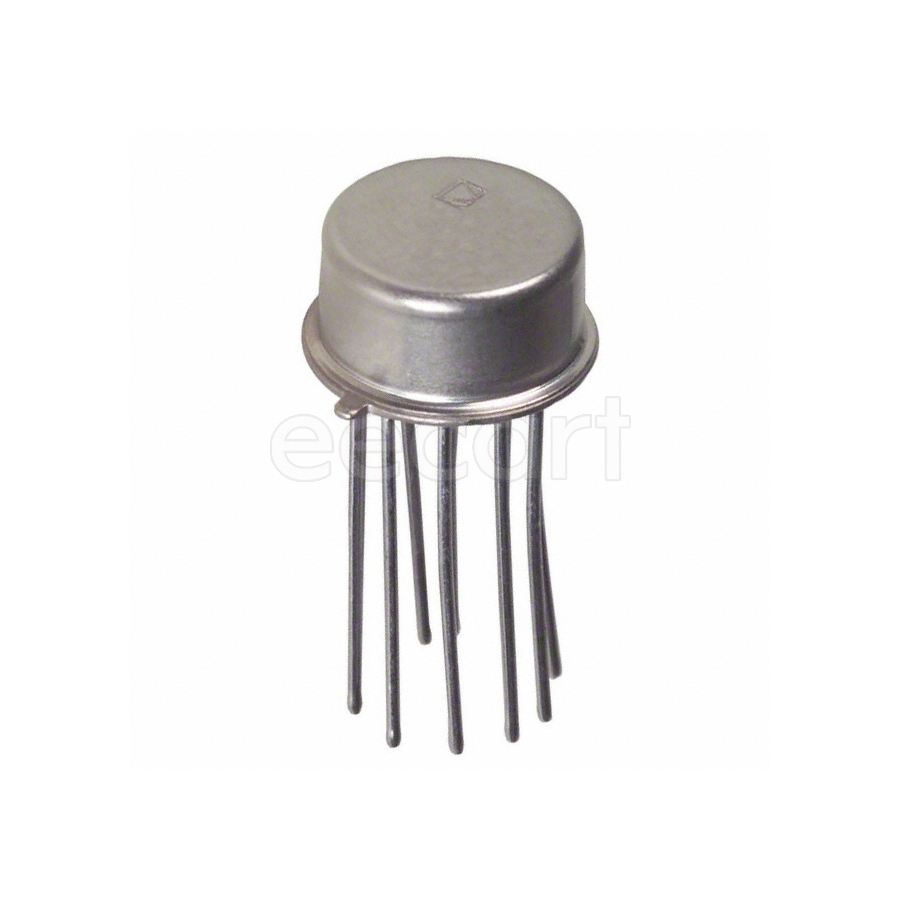

LM119H
Manufacturer:
Texas Instruments
Mfr.Part #:
LM119H
Datasheet:
Description:
Comparators TO-100-10 Through Hole General Purpose
| Parameter | Value |
|---|---|
| Length | 8.96 mm |
| Width | 8.96 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 10 |
| Height | 5.72 mm |
| Packaging | Tube |
| Thickness | 4.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | General Purpose |
| Number of Elements | 2 |
| Output Current | 25 mA |
| Output Type | TTL |
| Lifecycle Status | Active |
| Max Power Dissipation | 500 mW |
| Max Supply Voltage | 36 V |
| Min Supply Voltage | 5 V |
| Power Dissipation | 500 mW |
| Response Time | 80 ns |
| Number of Channels | 2 |
| Operating Supply Current | 4.3 mA |
| Input Bias Current | 500 nA |
| Quiescent Current | 11.5 mA |
| Max Supply Current | 4.3 mA |
| Dual Supply Voltage | 15 V |
| Nominal Supply Current | 4.3 mA |
| Max Input Current | 500 nA |
| Input Offset Voltage (Vos) | 4 mV |
| Max Dual Supply Voltage | 18 V |
| Min Dual Supply Voltage | 2.5 V |
| Voltage Gain | 92.04 dB |
Stock: 276
Distributors
pcbx
pcbxUnit Price$46.08413
Ext.Price$46.08413
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $46.08413 | $46.08413 |
| 10 | $38.24955 | $382.49550 |
| 25 | $36.31570 | $907.89250 |
| 50 | $35.57607 | $1778.80350 |
| 100 | $34.85120 | $3485.12000 |
| 300 | $33.85123 | $10155.36900 |
| 500 | $32.87974 | $16439.87000 |
| 1000 | $32.83015 | $32830.15000 |
| 3000 | $32.78000 | $98340.00000 |
| 5000 | $32.73013 | $163650.65000 |
