PLL1707DBQ
Manufacturer:
Texas Instruments
Mfr.Part #:
PLL1707DBQ
Datasheet:
Description:

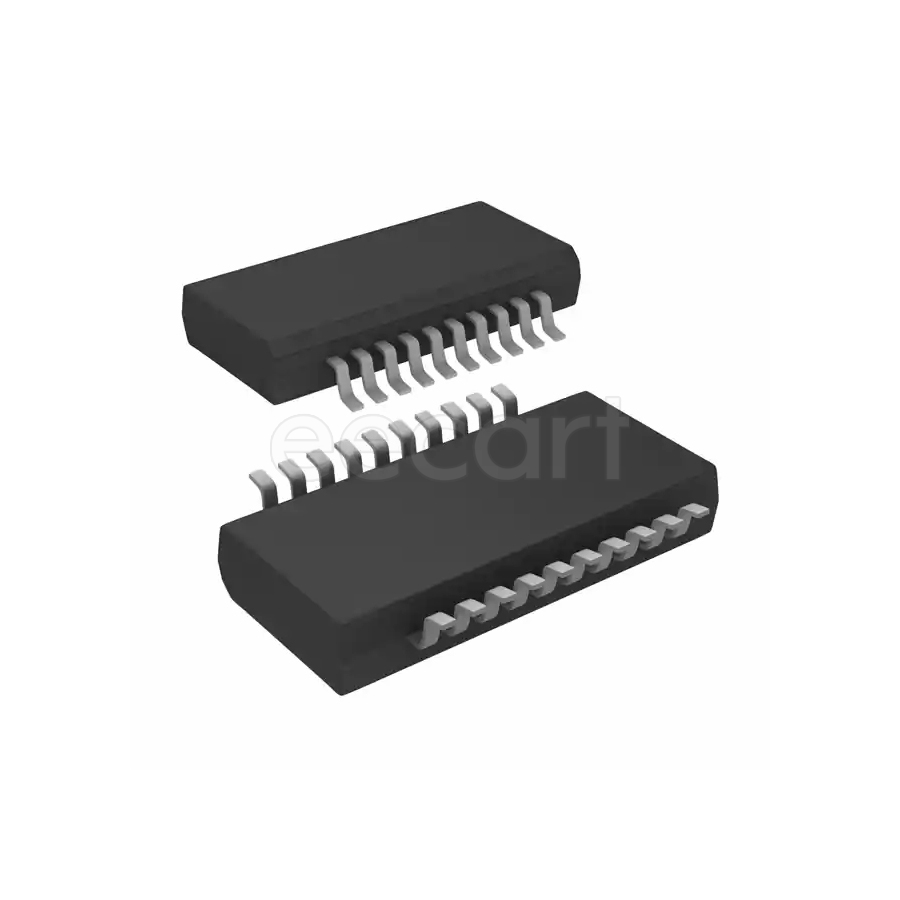

Clock Generators, PLLs, Frequency Synthesizers SSOP-20 SMD/SMT Yes 36.864 MHz
| Parameter | Value |
|---|---|
| Length | 8.65 mm |
| Width | 3.9 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 20 |
| Height | 1.75 mm |
| Thickness | 1.5 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Frequency | 27 MHz |
| Number of Elements | 2 |
| Number of Circuits | 1 |
| Operating Supply Voltage | 3.3 V |
| Lifecycle Status | Production (Last Updated: 6 days ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.7 V |
| Operating Supply Current | 19 mA |
| Max Supply Current | 25 mA |
| Max Frequency | 36.864 MHz |
| Input | Crystal |
| Number of Outputs | 6 |
| Nominal Supply Current | 25 mA |
| Input Current | 10 µA |
| Max Duty Cycle | 55 % |
| PLL | Yes |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 6 days ago) |
| Output Type | CMOS |
| Type | PLL Multi-Clock Generator |
| Divider/Multiplier | Yes/No |
| Ratio - Input:Output | 1:6 |
| Differential - Input:Output | No/No |
| Packaging | Tube |
| RoHS | Compliant |
Stock: 157
Distributors
pcbx
pcbxUnit Price$3.87967
Ext.Price$3.87967
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.87967 | $3.87967 |
| 10 | $2.97857 | $29.78570 |
| 25 | $2.67547 | $66.88675 |
| 50 | $2.40320 | $120.16000 |
| 100 | $2.28437 | $228.43700 |
| 300 | $2.25697 | $677.09100 |
| 500 | $2.22990 | $1114.95000 |
| 1000 | $2.20316 | $2203.16000 |
