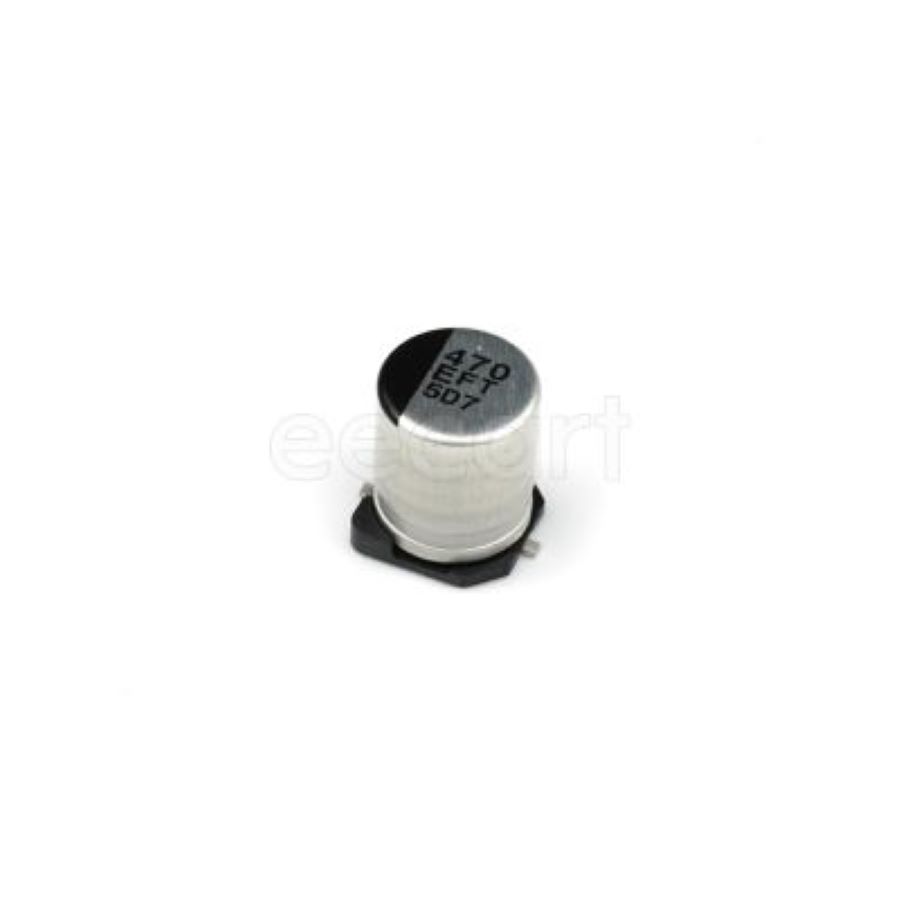

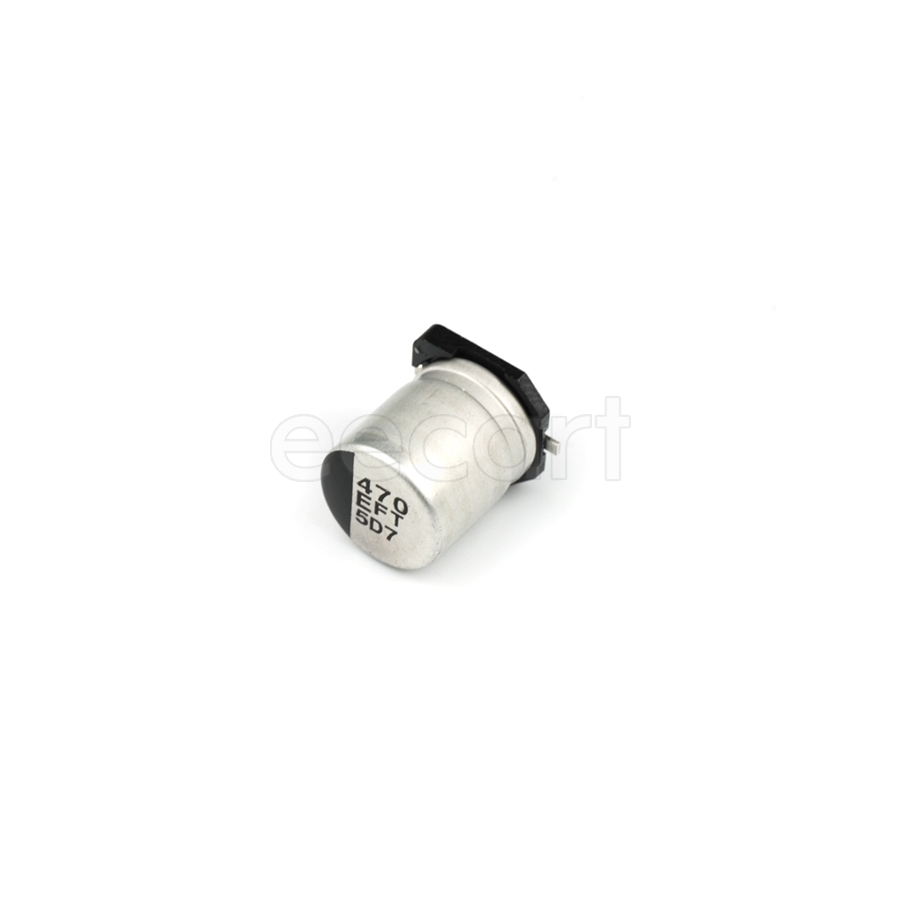

UCD1C470MCL1GS
Manufacturer:
Nichicon
Mfr.Part #:
UCD1C470MCL1GS
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial, Can - SMD SMD/SMT 47 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 47 µF |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Height - Seated (Max) | 6.1 mm |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 16 V |
| RoHS | Compliant |
| Impedance | 360 mΩ |
| Mounting Style | Surface Mount |
| lead free status | Lead Free |
| rohs status | Compliant |
| size height | 5.80 mm |
| voltage rating dc | 16 V |
| capacitance tolerance | 20 % |
| size diameter | 6.3 mm |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
Stock: 111
Distributors
pcbx
pcbxUnit Price$0.17798
Ext.Price$0.17798
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17798 | $0.17798 |
| 10 | $0.16057 | $1.60570 |
| 50 | $0.14486 | $7.24300 |
| 100 | $0.13385 | $13.38500 |
| 500 | $0.12367 | $61.83500 |
| 1000 | $0.11427 | $114.27000 |
| 3000 | $0.10828 | $324.84000 |
| 5000 | $0.10261 | $513.05000 |
